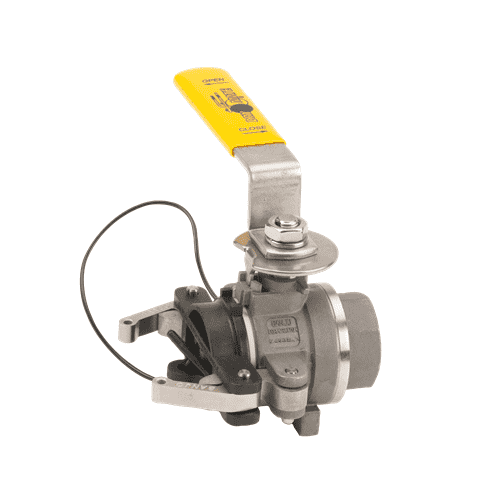

DM100ABSS Banjo Stainless Steel Dry-Mate Dry Disconnect 1" Full Port Male x BSP w/ PTFE Seals - Opening Thru Ball: 1" - 100 PSI

DM100ABSS by Banjo | Dry-Mate® Dry Disconnects | 1" Full Port Male x BSPP with PTFE Seals | Opening Thru Ball: 1" | 150 PSI | 300°F Max | 316 Stainless Steel

Save $44.31 Save $44.31
$398.78
$398.78 - $398.78
$398.78
$354.47
$354.47 - $354.47
$354.47

Banjo Dry Disconnects - 1" Dry-Disconnect - Full Port - 316 Stainless Steel
Specifications for Variant SKU: DM100ABSS Banjo
Shape (Orientation): Straight
Ends Configuration: 1in Female BSPP, 1in Male Dry-Mate Dry Disconnect
Material(s): 316 Stainless Steel
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
  • Prevents accidental spills and exposure
Features:
  • Dry-Mate Patented
  • 316 stainless steel construction
  • FKM (viton type), EPDM & Kalrez face seals
  • 100% PTFE ball seats
  • 150 PSI maximum operating pressure
  • 300° F maximum operating temperature.
  • Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • Male & Female sold separately
Other Components:
  • Replacement Parts for 1" Full Port Stainless Steel Dry Disconnect Couplings
Manuals:
  • 1" Full Port Stainless Steel Dry Disconnect Instruction Manual

Part Number Description Max PSI Pipe Size Opening Thru Ball
DM100ASS 1" Male x NPT w/ PTFE Seals 150 PSI 1" 1"
DM100ABSS 1" Male x BSP w/ PTFE Seals 150 PSI 1" 1"
DM100DSS 1" Female x NPT w/ FKM (viton type) Seals 150 PSI 1" 1"
DM100DSSE 1" Female x NPT w/ EPDM Seals 150 PSI 1" 1"
DM100DBSS 1" Female x BSP w/ FKM (viton type) Seals 150 PSI 1" 1"
DM100DBSSE 1" Female x BSP w/ EPDM Seals 150 PSI 1" 1"

Replacement Parts for DM100ASS
Item Part Number Description Quantity Required
5 DM10258* Seat PTFE 1
7A VSS10160F* Stem Packing PTFE 1
15 DM10151SS Stem 1
17 DM10300 Profile Insert 2
18 100P Pin 2
Not Shown DM100CAP Poly Cap 1
Not Shown DM101SS Repair Kit 1

* Is included in repair kit
