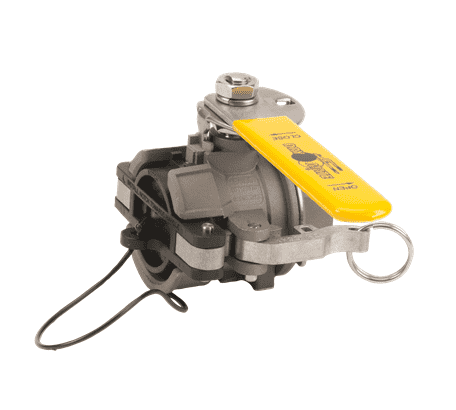

DM100DBSS Banjo Stainless Steel Dry-Mate Dry Disconnect 1" Full Port Female x BSP w/ FKM (viton type) Seals - Opening Thru Ball: 1" - 100 PSI

DM100DBSS by Banjo | Dry-Mate® Dry Disconnects | 1" Full Port Female x BSP with FKM (Viton) Seals | Opening Thru Ball: 1" | 150 PSI | 300°F Max | 316 Stainless Steel

Save $53.89 Save $53.89
$484.98
$484.98 - $484.98
$484.98
$431.09
$431.09 - $431.09
$431.09

Banjo Dry Disconnects - 1" Dry-Disconnect - Full Port - 316 Stainless Steel
Specifications for Variant SKU: DM100DBSS Banjo
Shape (Orientation): Straight
Ends Configuration: 1in Female BSPP, 1in Female Dry-Mate Dry Disconnect
Material(s): 316 Stainless Steel
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
  • Prevents accidental spills and exposure
Features:
  • Dry-Mate Patented
  • 316 stainless steel construction
  • FKM (viton type), EPDM & Kalrez face seals
  • 100% PTFE ball seats
  • 150 PSI maximum operating pressure
  • 300° F maximum operating temperature.
  • Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • Male & Female sold separately
Other Components:
  • Replacement Parts for 1" Full Port Stainless Steel Dry Disconnect Couplings
Manuals:
  • 1" Full Port Stainless Steel Dry Disconnect Instruction Manual

Part Number Description Max PSI Pipe Size Opening Thru Ball
DM100ASS 1" Male x NPT w/ PTFE Seals 150 PSI 1" 1"
DM100ABSS 1" Male x BSP w/ PTFE Seals 150 PSI 1" 1"
DM100DSS 1" Female x NPT w/ FKM (viton type) Seals 150 PSI 1" 1"
DM100DSSE 1" Female x NPT w/ EPDM Seals 150 PSI 1" 1"
DM100DBSS 1" Female x BSP w/ FKM (viton type) Seals 150 PSI 1" 1"
DM100DBSSE 1" Female x BSP w/ EPDM Seals 150 PSI 1" 1"

Replacement Parts for DM100ASS
Item Part Number Description Quantity Required
5 DM10258* Seat PTFE 1
7A VSS10160F* Stem Packing PTFE 1
15 DM10151SS Stem 1
17 DM10300 Profile Insert 2
18 100P Pin 2
Not Shown DM100CAP Poly Cap 1
Not Shown DM101SS Repair Kit 1

* Is included in repair kit

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
