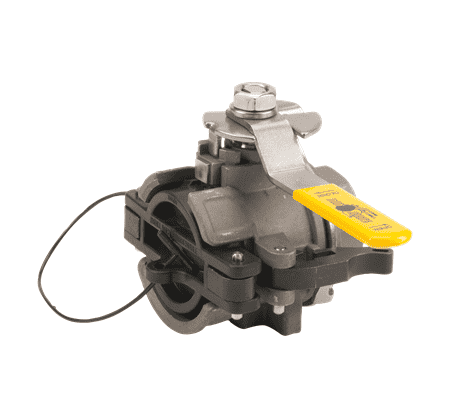

DM150DSSE Banjo Stainless Steel Dry-Mate Dry Disconnect 1-1/2" Full Port Female x NPT w/ EPDM Seals - Opening Thru Ball: 1-1/2" - 100 PSI

DM150DSSE by Banjo | Dry-Mate® Dry Disconnects | 1-1/2" Full Port Female x NPT with EPDM Seals | Opening Thru Ball: 1-1/2" | 150 PSI | 300°F Max | Stainless Steel

Save $123.98

$1,115.81

$1,115.81 - $1,115.81

$1,115.81

$991.83

$991.83 - $991.83

$991.83

Banjo Dry Disconnects
1-1/2" Dry-Disconnect - Full Port - Stainless Steel

Quantity

Specifications for Variant SKU: DM150DSSE Banjo
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female NPT, 1-1/2in Female Dry-Mate Dry Disconnect
Material(s):	316 Stainless Steel
Seal Material(s):	EPDM

Applications:
Fluids Agriculture Industrial Pharmaceutical Chemical Processing Prevents accidental spills and exposure
Features:
Dry-Mate Patented 316 stainless steel construction FKM (viton type), EPDM & Kalrez face seals 100% PTFE ball seats 100 PSI maximum operating pressure 300° F maximum operating temperature. Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position When Dry-Mate halves are apart, handles cannot be turned to open position. Male & Female sold separately
Manuals:
1-1/2" Full Port Stainless Steel Dry Disconnect Instruction Manual

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
DM150ASS	1-1/2" Male x NPT w/PTFE Seals	150 PSI	1-1/2"	1-1/2"
DM150ABSS	1-1/2" Male x BSP w/PTFE Seals	150 PSI	1-1/2"	1-1/2"
DM150DSS	1-1/2" Female x NPT w/ FKM (viton type) Seals	150 PSI	1-1/2"	1-1/2"
DM150DSSE	1-1/2" Female x NPT w/ EPDM Seals	150 PSI	1-1/2"	1-1/2"
DM150DBSS	1-1/2" Female x BSP w/ FKM (viton type) Seals	150 PSI	1-1/2"	1-1/2"


Replacement Parts for DM150ASS
Item	Part Number	Description	Quantity Required
2	DM15204SS*	Body Gasket PTFE	1
3	VE20258A*	Seat PTFE	1
4	DM15255MSS*	Ball	1
5	DB20258*	Seat PTFE	1
8	VSS15060*	Thrust Bearing PTFE	1
9	VSS15160*	Stem Packing PTFE	1
10	VSS15159	Packing Nut	1
12	VSS15020	5/8" - 18 Jam Nut	1
13	VSS15021	5/8" Lock Washer	1
14	DM15153SS	Handle	1
15	DM15288SS	Button	1
16	DB20281	Spring	2
17	DM20300	Profile Insert	2
18	200P	Pin	2
Not Shown	DM200ACAP	Dust Cap	1
Not Shown	V20207	Lanyard	1
Not Shown	DM201SS	Repair Kit	1

* Is included in repair kit
