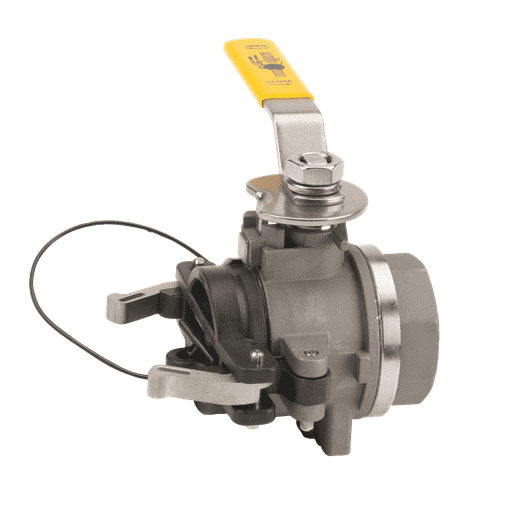

DM200ASS Banjo Stainless Steel Dry-Mate Dry Disconnect 2" Male x NPT w/ PTFE Seals - Opening Thru Ball: 1-1/2" - 100 PSI

DM200ASS by Banjo | Dry-Mate® Dry Disconnects | 2" Male x NPT with PTFE Seals | Opening Thru Ball: 1-1/2" | 150 PSI | 300°F Max | Stainless Steel

Save $80.72

$726.48

$726.48 - $726.48

$726.48

$645.76

$645.76 - $645.76

$645.76

Banjo Dry Disconnects - 2" Dry-Disconnect - Stainless Steel

Quantity

Specifications for Variant SKU: DM200ASS Banjo
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Male Dry-Mate Dry Disconnect
Material(s):	316 Stainless Steel
Seal Material(s):	PTFE

Applications:
Fluids Agriculture Industrial Pharmaceutical Chemical Processing Prevents accidental spills and exposure
Features:
Dry-Mate Patented 316 stainless steel construction FKM (viton type), EPDM & Kalrez face seals 100% PTFE ball seats 300° F maximum operating temperature. Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position When Dry-Mate halves are apart, handles cannot be turned to open position. Male & Female sold separately
Manuals:
2" Stainless Steel Dry Disconnect Instruction Manual

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
DM200ASS	2" Male x NPT w/ PTFE Seals	150 PSI	2"	1-1/2"
DM200ABSS	2" Male x BSP w/ PTFE Seals	150 PSI	2"	1-1/2"
DM200DSS	2" Female x NPT w/ FKM (viton type) Seals	150 PSI	2"	1-1/2"
DM200DSST	2" Female x NPT w/ Kalrez® Seals	150 PSI	2"	1-1/2"
DM200DBSS	2" Female x BSP w/ FKM (viton type) Seals	150 PSI	2"	1-1/2"


Replacement Parts for DM200DSS
Item	Part Number	Description	Quantity Required
2	DM15204SS*	Body Gasket PTFE	1
3	V20258*	Seat PTFE	1
4	DM15255FSS*	Ball	1
5	DB20258*	Body	1
8	DM15154FSS	Body	1
9	VSS15060*	Thrust Bearing PTFE	1
10	VSS15160*	Stem Packing PTFE	1
11	VSS15159	Packing Nut	1
12	DM15154SS	Interlock Cam	1
13	VSS15020	5/8" - 18 Jam Nut	1
14	VSS15021	5/8" Lock Washer	1
15	DM15153SS	Handle	1
16	DM15288SS	Button	1
17	DB20281	Spring	1
18	DM20294A*	FKM (viton type) Face Seal	1
18	DM20295A*	EPDM Face Seal	1
18	DM20296*	Kalrez® Face Seal	1
19	DM200KX	Cam Arm	2
20	200P	Pin	2
21	DM200APL	Dust Plug	1
Not Shown	V20207	Lanyard	1
Not Shown	DM202SSV	FKM (viton type) Repair Kit	1
Not Shown	DM202SSE	EPDM Repair Kit	1
Not Shown	DM202SST	Kalrez® Repair Kit	1

* Is included in repair kit
