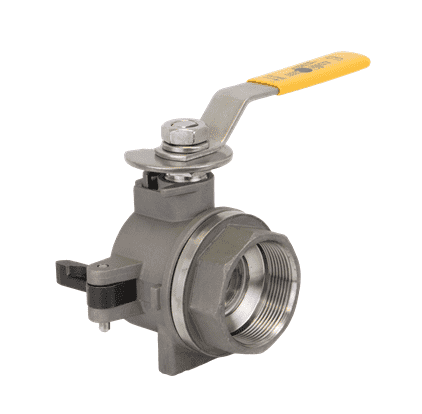

DM200ABSS Banjo Stainless Steel Dry-Mate Dry Disconnect 2" Male x BSP w/ PTFE Seals - Opening Thru Ball: 1-1/2" - 100 PSI

DM200ABSS by Banjo | Dry-Mate® Dry Disconnects | 2" Male x BSP with PTFE Seals | Opening Thru Ball: 1-1/2" | 150 PSI | 300°F Max | Stainless Steel

Save $430.08 Save $430.08
$1,075.20
$1,075.20 - $1,075.20
$1,075.20
$645.12
$645.12 - $645.12
$645.12

Banjo Dry Disconnects - 2" Dry-Disconnect - Stainless Steel
Specifications for Variant SKU: DM200ABSS Banjo
Shape (Orientation): Straight
Ends Configuration: 2in Female BSPP, 2in Male Dry-Mate Dry Disconnect
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
  • Prevents accidental spills and exposure
Features:
  • Dry-Mate Patented
  • 316 stainless steel construction
  • FKM (viton type), EPDM & Kalrez face seals
  • 100% PTFE ball seats
  • 300° F maximum operating temperature.
  • Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • Male & Female sold separately
Manuals:

Part Number Description Max PSI Pipe Size Opening Thru Ball
DM200ASS 2" Male x NPT w/ PTFE Seals 150 PSI 2" 1-1/2"
DM200ABSS 2" Male x BSP w/ PTFE Seals 150 PSI 2" 1-1/2"
DM200DSS 2" Female x NPT w/ FKM (viton type) Seals 150 PSI 2" 1-1/2"
DM200DSST 2" Female x NPT w/ Kalrez® Seals 150 PSI 2" 1-1/2"
DM200DBSS 2" Female x BSP w/ FKM (viton type) Seals 150 PSI 2" 1-1/2"

Replacement Parts for DM200DSS
Item Part Number Description Quantity Required
2 DM15204SS* Body Gasket PTFE 1
3 V20258* Seat PTFE 1
4 DM15255FSS* Ball 1
5 DB20258* Body 1
8 DM15154FSS Body 1
9 VSS15060* Thrust Bearing PTFE 1
10 VSS15160* Stem Packing PTFE 1
11 VSS15159 Packing Nut 1
12 DM15154SS Interlock Cam 1
13 VSS15020 5/8" - 18 Jam Nut 1
14 VSS15021 5/8" Lock Washer 1
15 DM15153SS Handle 1
16 DM15288SS Button 1
17 DB20281 Spring 1
18 DM20294A* FKM (viton type) Face Seal 1
18 DM20295A* EPDM Face Seal 1
18 DM20296* Kalrez® Face Seal 1
19 DM200KX Cam Arm 2
20 200P Pin 2
21 DM200APL Dust Plug 1
Not Shown V20207 Lanyard 1
Not Shown DM202SSV FKM (viton type) Repair Kit 1
Not Shown DM202SSE EPDM Repair Kit 1
Not Shown DM202SST Kalrez® Repair Kit 1

* Is included in repair kit

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
