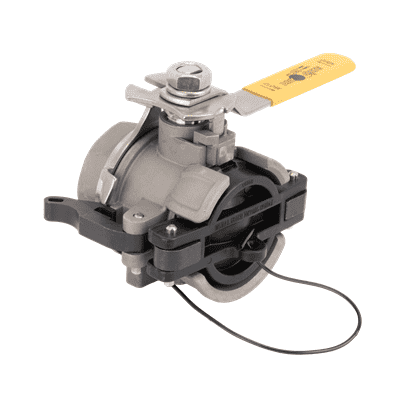

DM200DBSS Banjo Stainless Steel Dry-Mate Dry Disconnect 2" Female x BSP w/ FKM (viton type) Seals - Opening Thru Ball: 1-1/2" - 100 PSI

DM200DBSS by Banjo | Dry-Mate® Dry Disconnects | 2" Female BSPP x 2" Female Dry-Mate Dry Disconnect with FKM (Viton) Seals | Opening Thru Ball: 1-1/2" | 150 PSI | 300°F Max | Stainless Steel

Save $123.74 Save $123.74
$1,113.63
$1,113.63 - $1,113.63
$1,113.63
$989.89
$989.89 - $989.89
$989.89

Banjo Dry Disconnects - 2" Dry-Disconnect - Stainless Steel
Specifications for Variant SKU: DM200DBSS Banjo
Shape (Orientation): Straight
Ends Configuration: 2in Female BSPP, 2in Female Dry-Mate Dry Disconnect
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
  • Prevents accidental spills and exposure
Features:
  • Dry-Mate Patented
  • 316 stainless steel construction
  • FKM (viton type), EPDM & Kalrez face seals
  • 100% PTFE ball seats
  • 300° F maximum operating temperature.
  • Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • Male & Female sold separately
Manuals:

Part Number Description Max PSI Pipe Size Opening Thru Ball
DM200ASS 2" Male x NPT w/ PTFE Seals 150 PSI 2" 1-1/2"
DM200ABSS 2" Male x BSP w/ PTFE Seals 150 PSI 2" 1-1/2"
DM200DSS 2" Female x NPT w/ FKM (viton type) Seals 150 PSI 2" 1-1/2"
DM200DSST 2" Female x NPT w/ Kalrez® Seals 150 PSI 2" 1-1/2"
DM200DBSS 2" Female x BSP w/ FKM (viton type) Seals 150 PSI 2" 1-1/2"

Replacement Parts for DM200DSS
Item Part Number Description Quantity Required
2 DM15204SS* Body Gasket PTFE 1
3 V20258* Seat PTFE 1
4 DM15255FSS* Ball 1
5 DB20258* Body 1
8 DM15154FSS Body 1
9 VSS15060* Thrust Bearing PTFE 1
10 VSS15160* Stem Packing PTFE 1
11 VSS15159 Packing Nut 1
12 DM15154SS Interlock Cam 1
13 VSS15020 5/8" - 18 Jam Nut 1
14 VSS15021 5/8" Lock Washer 1
15 DM15153SS Handle 1
16 DM15288SS Button 1
17 DB20281 Spring 1
18 DM20294A* FKM (viton type) Face Seal 1
18 DM20295A* EPDM Face Seal 1
18 DM20296* Kalrez® Face Seal 1
19 DM200KX Cam Arm 2
20 200P Pin 2
21 DM200APL Dust Plug 1
Not Shown V20207 Lanyard 1
Not Shown DM202SSV FKM (viton type) Repair Kit 1
Not Shown DM202SSE EPDM Repair Kit 1
Not Shown DM202SST Kalrez® Repair Kit 1

* Is included in repair kit
