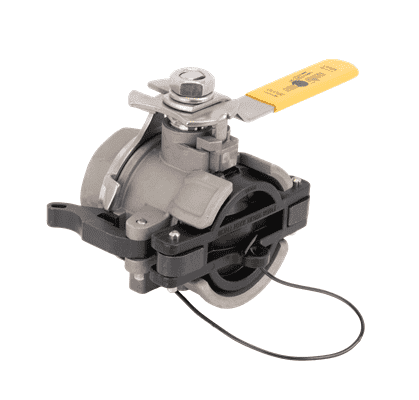

DM200DSS Banjo Stainless Steel Dry-Mate Dry Disconnect 2" Female x NPT w/ FKM (viton type) Seals - Opening Thru Ball: 1-1/2" - 100 PSI

DM200DSST by Banjo | Dry-Mate® Dry Disconnects | 2" Female x NPT with Kalrez Seals | Opening Thru Ball: 1-1/2" | 150 PSI | 300°F Max | Stainless Steel

Save $248.93 Save $248.93
$2,819.21
$2,819.21 - $2,819.21
$2,819.21
$2,570.28
$2,570.28 - $2,570.28
$2,570.28

Banjo Dry Disconnects - 2" Dry-Disconnect - Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DM200DSST Banjo
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female Dry-Mate Dry Disconnect
Material(s): 316 Stainless Steel
Seal Material(s): Misc. Elastomer
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
  • Prevents accidental spills and exposure
Features:
  • Dry-Mate Patented
  • 316 stainless steel construction
  • FKM (viton type), EPDM & Kalrez face seals
  • 100% PTFE ball seats
  • 300° F maximum operating temperature.
  • Spillage Data: 1" = 1ml, 1-1/2" and 2" = 2ml
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • Male & Female sold separately
Manuals:

Part Number Description Max PSI Pipe Size Opening Thru Ball
DM200ASS 2" Male x NPT w/ PTFE Seals 150 PSI 2" 1-1/2"
DM200ABSS 2" Male x BSP w/ PTFE Seals 150 PSI 2" 1-1/2"
DM200DSS 2" Female x NPT w/ FKM (viton type) Seals 150 PSI 2" 1-1/2"
DM200DSST 2" Female x NPT w/ Kalrez® Seals 150 PSI 2" 1-1/2"
DM200DBSS 2" Female x BSP w/ FKM (viton type) Seals 150 PSI 2" 1-1/2"

Replacement Parts for DM200DSS
Item Part Number Description Quantity Required
2 DM15204SS* Body Gasket PTFE 1
3 V20258* Seat PTFE 1
4 DM15255FSS* Ball 1
5 DB20258* Body 1
8 DM15154FSS Body 1
9 VSS15060* Thrust Bearing PTFE 1
10 VSS15160* Stem Packing PTFE 1
11 VSS15159 Packing Nut 1
12 DM15154SS Interlock Cam 1
13 VSS15020 5/8" - 18 Jam Nut 1
14 VSS15021 5/8" Lock Washer 1
15 DM15153SS Handle 1
16 DM15288SS Button 1
17 DB20281 Spring 1
18 DM20294A* FKM (viton type) Face Seal 1
18 DM20295A* EPDM Face Seal 1
18 DM20296* Kalrez® Face Seal 1
19 DM200KX Cam Arm 2
20 200P Pin 2
21 DM200APL Dust Plug 1
Not Shown V20207 Lanyard 1
Not Shown DM202SSV FKM (viton type) Repair Kit 1
Not Shown DM202SSE EPDM Repair Kit 1
Not Shown DM202SST Kalrez® Repair Kit 1

* Is included in repair kit
