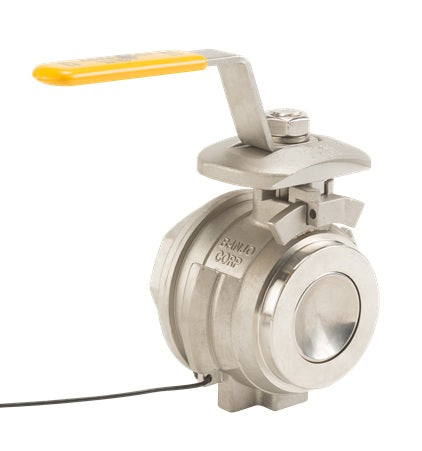

DM220ASS by Banjo | Dry-Mate® Dry Disconnect | 2" Full Port Male x FPT Threads with all PTFE Seals | Opening Thru Ball: 2" | 300 PSI | Stainless Steel

DM220ASS by Banjo | Dry-Mate® Dry Disconnect | 2" Full Port Male x FPT Threads with all PTFE Seals | Opening Thru Ball: 2" | 300 PSI | Stainless Steel

Save $200.66 Save $200.66
$1,142.69
$1,142.69 - $1,142.69
$1,142.69
$942.03
$942.03 - $942.03
$942.03

Banjo® Liquid Handling Products
Dry-Mate® Dry Disconnects | 2" Full Port Dry-Disconnect - Stainless Steel
Specifications for Variant SKU: DM220ASS Banjo
Brand: Dry-Mate
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): PTFE
Applications:
  • Fluids
  • Agriculture
  • Industrial
  • Pharmaceutical
  • Chemical Processing
  • Prevents accidental spills and exposure
Features:
  • Dry-Mate Patented
  • 316 stainless steel construction
  • FKM (viton type), EPDM & Kalrez face seals
  • 100% PTFE ball seats
  • 300 PSI maximum operating pressure
  • 300° F maximum operating temperature.
  • Spillage Data: Less than 1cc
  • Filled valve for no product residue.
  • 20 Degrees rotation either direction to ease coupling male and female halves.
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position.
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • Male & Female sold separately
Manuals:
Part Number Description Max PSI Pipe Size Opening Thru Ball
DM220ASS 2" Full Port Male x FPT NPT w/ PTFE Seals 300 PSI 2" 2"
DM220ABSS 2" Full Port Male x BSP Threads w/ all PTFE Seals 300 PSI 2" 2"
DM220DSS 2" Full Port Male x FPT NPT w/ FKM Seals 300 PSI 2" 2"
DM220DBSS 2" Full Port Female x BSP Threads w/ FKM (viton type) Seals 300 PSI 2" 2"
Replacement Parts for DM220ASS
Item Part Number Description Quantity Required
1 DB20281 Button Spring 2
2 DM25153SSM 2" Male Handle 1
3 DM220CAP Dust Cap 1
5 DM25155SS Male Handle Interlock 1
6 DM25204SS* Body Shim 1
7 DM25254MSS Body 1
8 DM25255SSH Ball 1
9 DM25256SS End Plate 1
10 DM25288MSS Safety Button 1
11 VSS15020 5/8" - 20 Jam Nut 1
12 VSS15021 5/8" Lock Washer 1
13 VSS15060* Stem Packing 1
14 VSS15159 Packing Nut 1
15 VSS15160* Stem Shim 1
16 DM25258FV1* Filled Valve Body Seat 1
17 DM25258FV2* Filled Valve End Plate Seat 1
18 DM221SS Repair Kit 1

* Is included in repair kit
