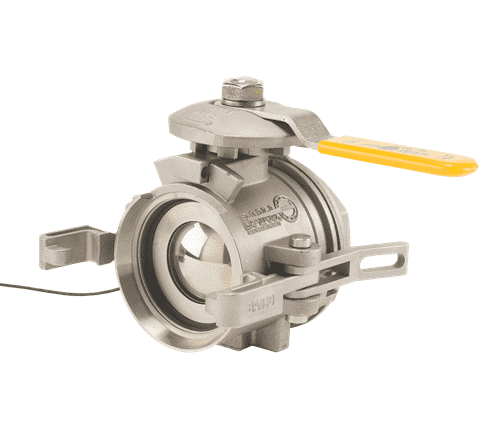

DM220DBSST Banjo 2" Stainless Steel Full Port Female British Standard Pipe Threads (BSPP) x Female Dry-Mate - PTFE Ball Seats

DM220DBSST by Banjo | Dry-Mate® Dry Disconnects | 2" Full Port Female BSP Threads (BSPP) x Female Dry-Mate | PTFE Ball Seats | 300°F | 300 PSI | 316 Stainless Steel

Save $307.15 Save $307.15
$1,829.15
$1,829.15 - $1,829.15
$1,829.15
$1,522.00
$1,522.00 - $1,522.00
$1,522.00

Banjo Dry Disconnects - 2" Stainless Steel Full Port Female British Standard Pipe Threads (BSPP) x Female Dry-Mate - PTFE Ball Seats
Specifications for Variant SKU: DM220DBSST Banjo
Shape (Orientation): Straight
Ends Configuration: 2in Female BSPP, 2in Female Dry-Mate Dry Disconnect
Material(s): 316 Stainless Steel
Seal Material(s): Misc. Elastomer
Applications:
  • Agriculture
  • Chemical processing
  • Industrial
  • Pharmaceutical
Description:
  • 100% PTFE ball seats.
  • 20° rotation either direction to ease coupling male and female halves.
  • 300°F maximum operating temperature.
  • 316 stainless steel construction.
  • Filled valve for no product residue.
  • FKM (viton type) standard, EPDM face seals available.
  • Sizes: 2" Full Port (Female NPT & BSP Threads)
  • Spillage data: Less than 1cc.
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position.

Part Number Description Max PSI
DM220DB 2" Polypropylene Full Port Female BSP x Female Dry-Mate 300 PSI
