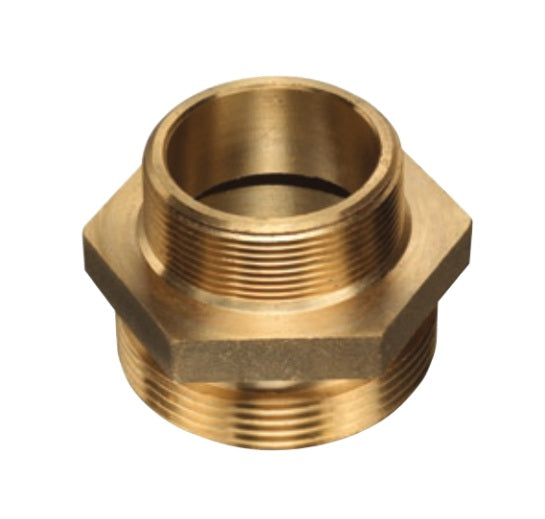

DMHN-40PT40SH by Kuriyama | DMHN Series | Hydrant & Garden Hose Adapter | Hex Nipple | 2-1/2" Male NPT x 2-1/2" Male NPSH | Brass

DMHN-40PT40SH by Kuriyama | DMHN Series | Hydrant & Garden Hose Adapter | Hex Nipple | 2-1/2" Male NPT x 2-1/2" Male NPSH | Brass

Save $12.96 Save $12.96
$59.07
$59.07 - $59.07
$59.07
$46.11
$46.11 - $46.11
$46.11

Kuriyama of America Inc.
DMHN Series | Hydrant & Garden Hose Hex Nipple | Brass

Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
Specifications for Variant SKU: DMHN-40PT40SH Kuriyama
Series: DMHN Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male NPT, 2-1/2in Male NPSH
Material(s): Brass
Applicable Specs & Approvals: ASTM B584

What are the Features?

  • Designed for use in connection of hoses, nozzles, hydrants, pipes, or other fittings using NST, NPSH, or GHT threads.
  • Brass adapters are more durable and heat resistant than aluminum adapters.

What are the Materials?

  • Made of heavy-duty brass material.
  • Brass ASTM B584, Grade C85700.
Part Number Male Thread
(in)		 Male Thread
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
DMHN-16PT12GH 1" Male NPT 3/4" Male GHT 300 PSI 0.26 lbs
DMHN-16PT16SH 1" Male NPT 1" Male NPSH 300 PSI 0.33 lbs
DMHN-24PT24SH 1-1/2" Male NPT 1-1/2" Male NPSH 300 PSI 0.52 lbs
DMHN-32PT32SH 2" Male NPT 2" Male NPSH 300 PSI 1.25 lbs
DMHN-40PT40SH 2-1/2" Male NPT 2-1/2" Male NPSH 300 PSI 1.03 lbs
DMHN-16PT16ST 1" Male NPT 1" Male NST 300 PSI 0.51 lbs
DMHN-24PT24ST 1-1/2" Male NPT 1-1/2" Male NST 300 PSI 0.48 lbs
DMHN-32PT40ST 2" Male NPT 2-1/2" Male NST 300 PSI 1.34 lbs
DMHN-40PT40ST 2-1/2" Male NPT 2-1/2" Male NST 300 PSI 1.26 lbs
DMHN-48PT40ST 3" Male NPT 2-1/2" Male NST 300 PSI 2.14 lbs
DMHN-24ST24ST 1-1/2" Male NST 1-1/2" Male NST 300 PSI 0.52 lbs
DMHN-48ST40ST 3" Male NST 2-1/2" Male NST 300 PSI 2.51 lbs
DMHN-24ST24SH 1-1/2" Male NST 1-1/2" Male NPSH 300 PSI 0.49 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
