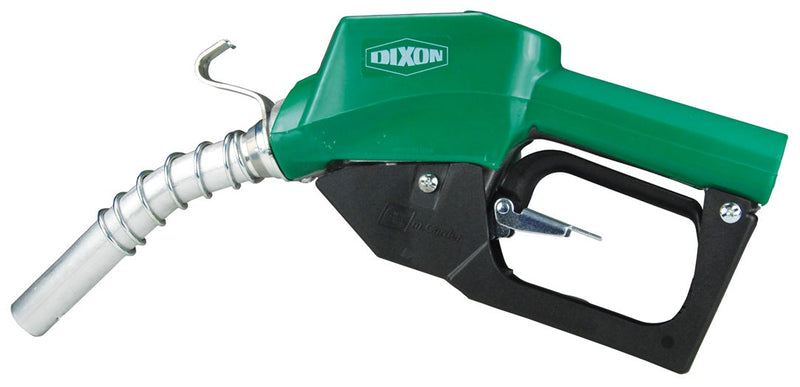

DN7LOBF by Dixon Valve | Farm and Consumer Diesel Nozzle | 3/4" NPT Inlet | 15/16" Spout Outlet | Green Scuff Guard | Aluminum

DN7LOBF by Dixon Valve | Farm and Consumer Diesel Nozzle | 3/4" NPT Inlet | 15/16" Spout Outlet | Green Scuff Guard | Aluminum

Save $75.84 Save $75.84
$189.60
$189.60 - $189.60
$189.60
$113.76
$113.76 - $113.76
$113.76

Dixon Valve
Tank Truck | Farm and Consumer Nozzle

For use with small 12-volt or AC utility pumps, farm or consumer pumps (not designed for use with gravity flow tanks).
Specifications for Variant SKU: DN7LOBF Dixon
Brand: Bayco
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female NPT
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • Micro-touch valve provides smooth operation and exceptional flow control.
  • Pure PTFE stem packing eliminates leaks.
  • Heavy duty, strong, secure hook makes it easy to hang the nozzle on the pump.
  • Roto-matic latch pin provides positive auto shut-off.
  • Smartguard snap-on scuff guard.
Construction:
  • Body and spout: aluminum.
  • Body caps: zinc or nylon.
  • Seals: FKM.
  • Poppet disk: FKM.
  • Stem packing: PTFE.
  • Hand-guard and trigger hold.
  • Open clip: super tough nylon.
  • Trigger: steel.
  • Snap-on cover: plastic.
  • Scuff guard: vinyl.
Fuel Nozzle Part Number Cross Reference
Dixon® M. Carder OPW Emco Husky Catlow
DN7UOBF N7UOBF 1AF-40FS A2501F XSF-33704 NENLF
DN7LOBF N7LOBF 11APF-40FS A2501LF --- NELF
Features Part Number NPT Inlet Spout
Outlet		 Approximate Flow
Rate at 20 PSI (GPM)		 Scuff Guard Color Service
With trigger hold-open clip
Non Underwriters Listed nozzle		 DN7UOBF 3/4" 13/16" 18 GPM Black Gasoline
DN7LOBF 3/4" 15/16" 23 GPM Green Diesel
DFN100F* 1" 1-1/8" 27 GPM Yellow Diesel

With trigger hold-open clip
With 'no pressure, no flow' safety valve
Underwriters Listed nozzle		 DN7UOBF-NPNF 3/4" 13/16" 18 GPM Black Gasoline
DN7LOBF-NPNF 3/4" 15/16" 23 GPM Green Diesel
DFN100F-NPNF 1" 1-1/8" 27 GPM Yellow Diesel

Without trigger hold-open clip
Underwriters Listed nozzle		 DN7UOBF-NC 3/4" 13/16" 18 GPM Black Gasoline
DN7LOBF-NC 3/4" 15/16" 23 GPM Green Diesel
DFN100F-NC 1" 1-1/8" 27 GPM Yellow Diesel

* Hand-guard and rear back clip: super tough nylon
