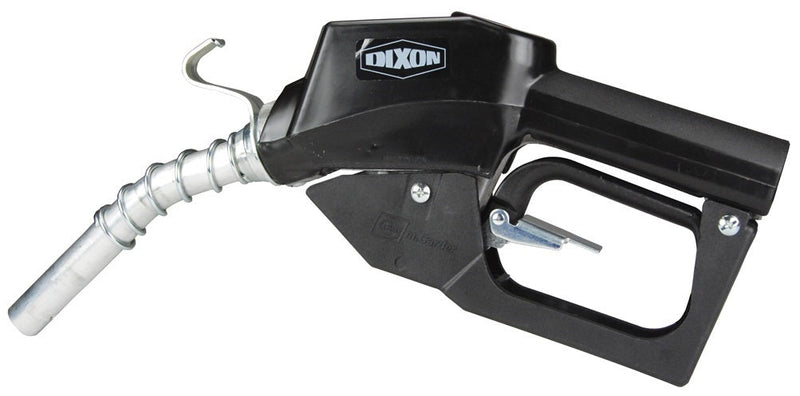

DN7UOBF-NC by Dixon Valve | Farm and Consumer Gasoline Nozzle | UL Listed | 3/4" NPT Inlet | 13/16" Spout Outlet | Black Scuff Guard | Aluminum

DN7UOBF-NC by Dixon Valve | Farm and Consumer Gasoline Nozzle | UL Listed | 3/4" NPT Inlet | 13/16" Spout Outlet | Black Scuff Guard | Aluminum

Save $10.85 Save $10.85
$97.61
$97.61 - $97.61
$97.61
$86.76
$86.76 - $86.76
$86.76

Dixon Valve
Tank Truck | Farm and Consumer Nozzle

For use with small 12-volt or AC utility pumps, farm or consumer pumps (not designed for use with gravity flow tanks).
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DN7UOBF-NC Dixon
Brand: Bayco
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female NPT
Material(s): Aluminum
Seal Material(s): Viton/FKM
Features:
  • Micro-touch valve provides smooth operation and exceptional flow control.
  • Pure PTFE stem packing eliminates leaks.
  • Heavy duty, strong, secure hook makes it easy to hang the nozzle on the pump.
  • Roto-matic latch pin provides positive auto shut-off.
  • Smartguard snap-on scuff guard.
Construction:
  • Body and spout: aluminum.
  • Body caps: zinc or nylon.
  • Seals: FKM.
  • Poppet disk: FKM.
  • Stem packing: PTFE.
  • Hand-guard and trigger hold.
  • Open clip: super tough nylon.
  • Trigger: steel.
  • Snap-on cover: plastic.
  • Scuff guard: vinyl.
Fuel Nozzle Part Number Cross Reference
Dixon® M. Carder OPW Emco Husky Catlow
DN7UOBF N7UOBF 1AF-40FS A2501F XSF-33704 NENLF
DN7LOBF N7LOBF 11APF-40FS A2501LF --- NELF
Features Part Number NPT Inlet Spout
Outlet		 Approximate Flow
Rate at 20 PSI (GPM)		 Scuff Guard Color Service
With trigger hold-open clip
Non Underwriters Listed nozzle		 DN7UOBF 3/4" 13/16" 18 GPM Black Gasoline
DN7LOBF 3/4" 15/16" 23 GPM Green Diesel
DFN100F* 1" 1-1/8" 27 GPM Yellow Diesel

With trigger hold-open clip
With 'no pressure, no flow' safety valve
Underwriters Listed nozzle		 DN7UOBF-NPNF 3/4" 13/16" 18 GPM Black Gasoline
DN7LOBF-NPNF 3/4" 15/16" 23 GPM Green Diesel
DFN100F-NPNF 1" 1-1/8" 27 GPM Yellow Diesel

Without trigger hold-open clip
Underwriters Listed nozzle		 DN7UOBF-NC 3/4" 13/16" 18 GPM Black Gasoline
DN7LOBF-NC 3/4" 15/16" 23 GPM Green Diesel
DFN100F-NC 1" 1-1/8" 27 GPM Yellow Diesel

* Hand-guard and rear back clip: super tough nylon
