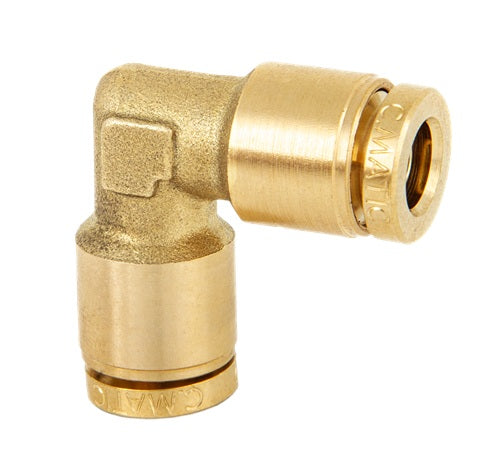

DOT-BRUNE90-0606 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRUNE90 Series | DOT Air Brake Push-to-Connect Fitting | 90° Elbow | Union | 3/8" Tube OD x 0.244" Tube ID | Brass

DOT-BRUNE90-0606 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRUNE90 Series | DOT Air Brake Push-to-Connect Fitting | 90° Elbow | Union | 3/8" Tube OD x 0.244" Tube ID | Brass | (Pack of 25)

Save $21.40 Save $21.40
$167.80
$167.80 - $167.80
$167.80
$146.40
$146.40 - $146.40
$146.40

Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRUNE90 Series | 90° Elbow | Union | Male Push-to-Connect x Male Push-to-Connect

Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Package Quantity: 10 Units

Specifications for Variant SKU: DOT-BRUNE90-0606 Kuriyama | 25 |
Brand: ENDURE, Kuri-Tec
Series: DOT-BRUNE90 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Push-to-Connect, 3/8in Push-to-Connect
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J844
Compatible with the following Series: 151 Series  |   251 Series
Applications:
  • Pneumatic circuits for truck and trailers: air suspension, braking systems, transmissions, locking doors and windows, seat adjustment, instrumentation, air conditioning systems, horn, wiper motors, valves, cylinders and accessories.
  • Suitable for all air assisted applications except those designed for use between frame and axle or between towed and towing vehicles.
Construction:
  • Brass housing.
  • Polyethylene holding ring.
  • Nitrile (NBR) seals.
Specifications:
  • Temperature Range: -58°F (-50°C) to +212°F (+100°C)
  • Max. Pressure: 290 PSI
  • Vacuum Rating: 29 inHg
Recommended Tubing:
  • Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Part Number Tube OD
(in)		 Tube* ID
(in)		 D2
(in)		 L1
(in)		 Weight
Each (lbs)
DOT-BRUNE90-0404 1/4" 0.165" 0.472" 0.866" 0.040 lbs
DOT-BRUNE90-0606 3/8" 0.244" 0.630" 1.024" 0.084 lbs
DOT-BRUNE90-0808 1/2" 0.362" 0.787" 1.110" 0.135 lbs
DOT-BRUNE90-1010 5/8" 0.433" 0.945" 1.398" 0.228 lbs

Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
