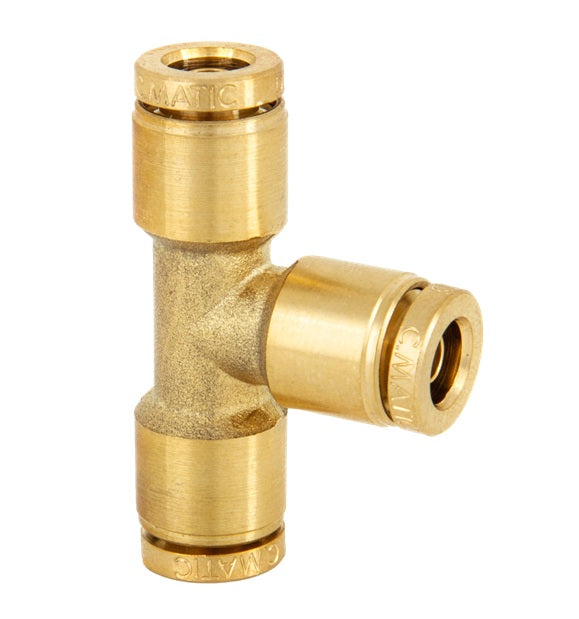

DOT-BRUNT-0606 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRUNT Series | DOT Air Brake Push-to-Connect Fitting | Union | Tee | 3/8" Tube OD x 0.244" Tube ID | Brass | (Pack of 25)

Save $31.31

$263.36

$263.36 - $263.36

$263.36

$232.05

$232.05 - $232.05

$232.05

Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRUNT Series | Tee | Union | Male Push-to-Connect x Male Push-to-Connect x Male Push-to-Connect

Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Package Quantity: 10 Units

Specifications for Variant SKU: DOT-BRUNT-0606 Kuriyama \| 25 \|
Brand:	ENDURE, Kuri-Tec
Series:	DOT-BRUNT Series
Shape (Orientation):	Tee
Ends Configuration:	3/8in Push-to-Connect, 3/8in Push-to-Connect, 3/8in Push-to-Connect
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Applicable Specs & Approvals:	D.O.T. FMVSS 106, SAE J844
Compatible with the following Series:	151 Series \| 251 Series

Applications:
Pneumatic circuits for truck and trailers: air suspension, braking systems, transmissions, locking doors and windows, seat adjustment, instrumentation, air conditioning systems, horn, wiper motors, valves, cylinders and accessories. Suitable for all air assisted applications except those designed for use between frame and axle or between towed and towing vehicles.
Construction:
Brass housing. Polyethylene holding ring. Nitrile (NBR) seals.
Specifications:
Temperature Range: -58°F (-50°C) to +212°F (+100°C) Max. Pressure: 290 PSI Vacuum Rating: 29 inHg
Recommended Tubing:
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.


Part Number	Tube OD 1 (in)	Tube* ID 1 (in)	Tube OD 2 (in)	Tube* ID 2 (in)	D2 (in)	D3 (in)	L1 (in)	L2 (in)	Weight Each (lbs)
DOT-BRUNT-0404	1/4"	0.165"	1/4"	0.165"	0.472"	0.472"	0.846"	1.693"	0.055 lbs
DOT-BRUNT-0604	3/8"	0.244"	1/4"	0.165"	0.630"	0.472"	0.945"	2.008"	0.106 lbs
DOT-BRUNT-0606	3/8"	0.244"	3/8"	0.244"	0.630"	0.630"	1.004"	2.008"	0.116 lbs
DOT-BRUNT-0806	1/2"	0.362"	3/8"	0.244"	0.787"	0.630"	1.102"	2.220"	0.178 lbs
DOT-BRUNT-0808	1/2"	0.362"	1/2"	0.362"	0.787"	0.787"	1.063"	2.220"	0.184 lbs
DOT-BRUNT-1010	5/8"	0.433"	5/8"	0.433"	0.945"	0.945"	1.398"	2.795"	0.359 lbs

Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
