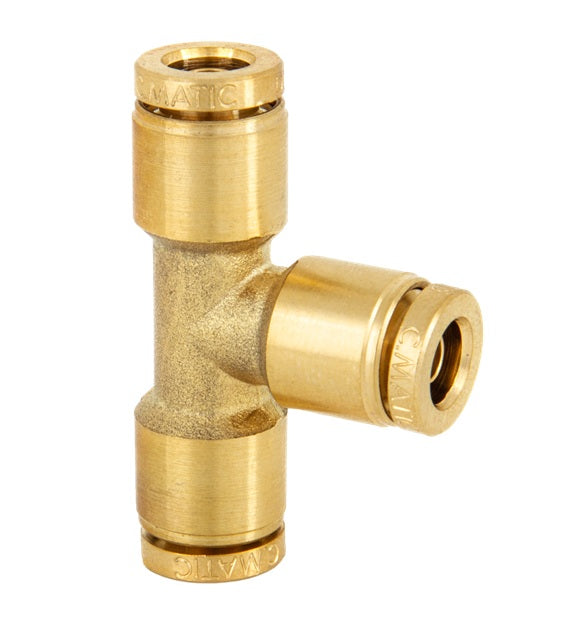

DOT-BRUNT-1010 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRUNT Series | DOT Air Brake Push-to-Connect Fitting | Union | Tee | 5/8" Tube OD x 0.433" Tube ID | Brass

DOT-BRUNT-1010 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRUNT Series | DOT Air Brake Push-to-Connect Fitting | Union | Tee | 5/8" Tube OD x 0.433" Tube ID | Brass | (Pack of 10)

Save $31.90 Save $31.90
$265.72
$265.72 - $265.72
$265.72
$233.82
$233.82 - $233.82
$233.82

Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRUNT Series | Tee | Union | Male Push-to-Connect x Male Push-to-Connect x Male Push-to-Connect

Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Package Quantity: 10 Units

Specifications for Variant SKU: DOT-BRUNT-1010 Kuriyama | 10 |
Brand: ENDURE, Kuri-Tec
Series: DOT-BRUNT Series
Shape (Orientation): Tee
Ends Configuration: 5/8in Push-to-Connect, 5/8in Push-to-Connect, 5/8in Push-to-Connect
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Applicable Specs & Approvals: D.O.T. FMVSS 106, SAE J844
Compatible with the following Series: 151 Series  |   251 Series
Applications:
  • Pneumatic circuits for truck and trailers: air suspension, braking systems, transmissions, locking doors and windows, seat adjustment, instrumentation, air conditioning systems, horn, wiper motors, valves, cylinders and accessories.
  • Suitable for all air assisted applications except those designed for use between frame and axle or between towed and towing vehicles.
Construction:
  • Brass housing.
  • Polyethylene holding ring.
  • Nitrile (NBR) seals.
Specifications:
  • Temperature Range: -58°F (-50°C) to +212°F (+100°C)
  • Max. Pressure: 290 PSI
  • Vacuum Rating: 29 inHg
Recommended Tubing:
  • Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Part Number Tube OD 1
(in)		 Tube* ID 1
(in)		 Tube OD 2
(in)		 Tube* ID 2
(in)		 D2
(in)		 D3
(in)		 L1
(in)		 L2
(in)		 Weight
Each (lbs)
DOT-BRUNT-0404 1/4" 0.165" 1/4" 0.165" 0.472" 0.472" 0.846" 1.693" 0.055 lbs
DOT-BRUNT-0604 3/8" 0.244" 1/4" 0.165" 0.630" 0.472" 0.945" 2.008" 0.106 lbs
DOT-BRUNT-0606 3/8" 0.244" 3/8" 0.244" 0.630" 0.630" 1.004" 2.008" 0.116 lbs
DOT-BRUNT-0806 1/2" 0.362" 3/8" 0.244" 0.787" 0.630" 1.102" 2.220" 0.178 lbs
DOT-BRUNT-0808 1/2" 0.362" 1/2" 0.362" 0.787" 0.787" 1.063" 2.220" 0.184 lbs
DOT-BRUNT-1010 5/8" 0.433" 5/8" 0.433" 0.945" 0.945" 1.398" 2.795" 0.359 lbs

Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
