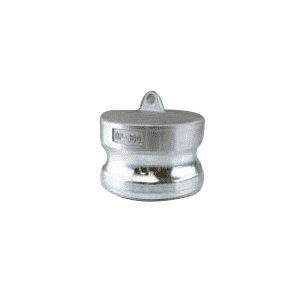

DP075A by Jason Industrial | 3/4" Cam and Groove | Part DP | Dust Plug | Aluminum

DP075A by Jason Industrial | 3/4" Cam and Groove | Part DP | Dust Plug | Aluminum

Save $1.41 Save $1.41
$2.88
$2.88 - $2.88
$2.88
$1.47
$1.47 - $1.47
$1.47

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part DP - Dust Plug - Aluminum
Specifications for Variant SKU: DP075A Jason
Cam Type: Type DP
Ends Configuration: 3/4in Male Cam & Groove
Material(s): Aluminum
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Fits male adapters.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • The 8" comes in two different styles. That size will interchange as follows:
    • Jason 800 series interchanges with PT Domestic, Kuriyama of America, Dixon Global and Campbell.
    • Jason 801 series interchanges with PT Import, NECO, Dixon Andrews, Evertite/APG, UPD and Sealfast
  • Aluminum body features being lightweight, rigid and having high tensile strength.
  • Female couplers are supplied with safety pins.
  • Cam arms are 304 Stainless.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
Material Specs:
  • Aluminum alloy spec ASTM B85 Grade 383.
  • 304 Type stainless steel handles.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Gaskets are nitrile.
Other Components:
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
DP075A 3/4" 250 PSI
DP100A 1" 250 PSI
DP125A 1-1/4" 250 PSI
DP150A 1-1/2" 250 PSI
DP200A 2" 250 PSI
DP250A 2-1/2" 150 PSI
DP300A 3" 125 PSI
DP400A 4" 100 PSI
DP500A 5" 75 PSI
DP600A 6" 75 PSI
DP800A 8" 50 PSI
* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
