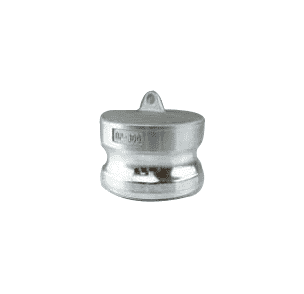

DP075S by Jason Industrial | 3/4" Cam and Groove | Part DP | Dust Plug | 304 Stainless Steel

DP075S by Jason Industrial | 3/4" Cam and Groove | Part DP | Dust Plug | 304 Stainless Steel

Save $0.04 Save $0.04
$4.43
$4.43 - $4.43
$4.43
$4.39
$4.39 - $4.39
$4.39

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part DP - Dust Plug - 304 Stainless Steel
Specifications for Variant SKU: DP075S Jason
Cam Type: Type DP
Ends Configuration: 3/4in Male Cam & Groove
Material(s): 304 Stainless Steel
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Fits male adapters.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • Chemical composition of the alloy is analyzed on every melt.
  • Especialy capable for chemical and food applications.
Material Specs:
  • Coupling body material meets ASTM A666 304 stainless steel specifications.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Other Components:
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
DP050S 1/2" 150 PSI
DP075S 3/4" 250 PSI
DP100S 1" 250 PSI
DP125S 1-1/4" 250 PSI
DP150S 1-1/2" 250 PSI
DP200S 2" 250 PSI
DP250S 2-1/2" 150 PSI
DP300S 3" 125 PSI
DP400S 4" 100 PSI
DP600S 6" 75 PSI
* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
