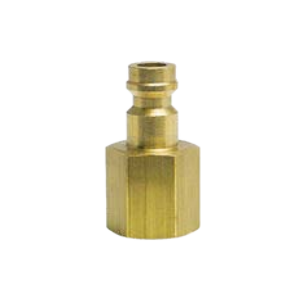

DR21-1PF Breco by Foster | DR Series | 1/8" Plug x 1/8" Female NPT Thread | Straight | Brass

Name: DR21-1PF Breco by Foster | DR Series | 1/8" Plug x 1/8" Female NPT Thread | Straight | Brass
Brand: ZSi-Foster
SKU: DR21-1PF ZSi-Foster
Price: 2.99 USD
Availability: InStock

Save $4.31

$7.30

$7.30 - $7.30

$7.30

$2.99

$2.99 - $2.99

$2.99

Foster Quick Disconnects - 1/8" - DR Series Sockets - Breco

Specifications for Variant SKU: DR21-1PF ZSi-Foster
Brand:	Breco
Series:	DR Series
Shape (Orientation):	Straight
Material(s):	Brass

1/8" - DR Series (Interchange with Rectus 21 KA)
Maximized flow path allows greater flow than other 1/8" NPT coupler designs 6 retaining balls versus 5 in the Rectus 21 KA provides greater plug retention 9/16" Wrench flats versus 14mm on Rectus 21 KA Ball-holes with corner radius have 65% more ball-to-body contact area and provide longer life and increased reliability Precision molded leak-proof seal Quick, easy push-to-connect design Brass construction for corrosion resistance

Specifications
Material:	Brass plugs & sockets
Seal:	Buna-N
Air Flow:	17 CFM @ 100 PSIG @ 5.0 PSIG Pressure Drop
Working Pressure:	300 PSIG
Body Sizes:	1/8"
Connection Sizes:	1/8" NPT
Interchangeability:	Rectus 21 KA, Tomco SC, Camozzi 5000, and CEJN 223 Series

Part Number	Size	FPT	Description
DR21-1F (Socket)	1/8"	1/8"	Brass
DR21-1PF (Plug)	1/8"	1/8"	Brass

Part Number	Size	MPT	Description
DR21-1M (Socket)	1/8"	1/8"	Brass
DR21-1PM (Plug)	1/8"	1/8"	Brass
