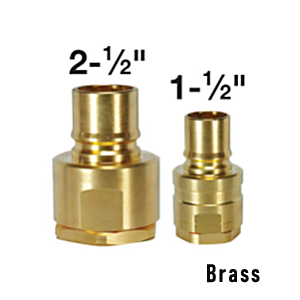

DS12F12-B Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1-1/2" Plug x 1-1/2" Female NPTF Thread | Brass

DS12F12-B Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1-1/2" Plug x 1-1/2" Female NPTF Thread | Brass

Save $112.21 Save $112.21
$280.52
$280.52 - $280.52
$280.52
$168.31
$168.31 - $168.31
$168.31

Foster Quick Disconnects - FHK & DS Series 1-1/2" Two Way Shut-Off, Plugs and Sockets - Breco
Specifications for Variant SKU: DS12F12-B ZSi-Foster
Brand: Breco
Series: DS Series
Shape (Orientation): Straight
Material(s): Brass
FHK Series Product Information
Applications: Hydraulic couplings used to prevent fluid loss upon disconnection; suitable for various media. Seal Compound: Buna-N (Nitrile)
Vacuum Service: 27" Hg. per ANSI/B93.2-1986 with 4:1 Safety Factor Type: FHK, Two-Way Shutoff – Both socket and plug sealed at disconnect
Interchangeability: Standard industrial design. ISO 7241-1, Series B compatible Operation: Manual sleeve retraction required
Connect/disconnect at zero pressure for safety
Options:
  • One Way Shut-Off (VA): Valve actuator option
  • Straight-Thru (LV): Less valve option
  • Ball Lock (BL): Prevents accidental disconnect
Ordering Info: Available in plated steel, brass, 303/316 stainless. Brass has double O-rings and stainless balls. Standard seals are Buna-N. Locking sleeves use “BL” prefix.
Part Number Type Finish Body Size Thread Size Hex Wrench Area Max. Working Pressure Hydraulic Oil Rated Flow at 100°F
In. ISO mm
12DSF12-B Socket Brass 1-1/2" 40 mm 1-1/2" NPTF 2.36" 1,500 PSI 100 gpm
DS12F12-B Plug Brass 1-1/2" 40 mm 1-1/2" NPTF 2.36" 1,500 PSI 100 gpm

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
