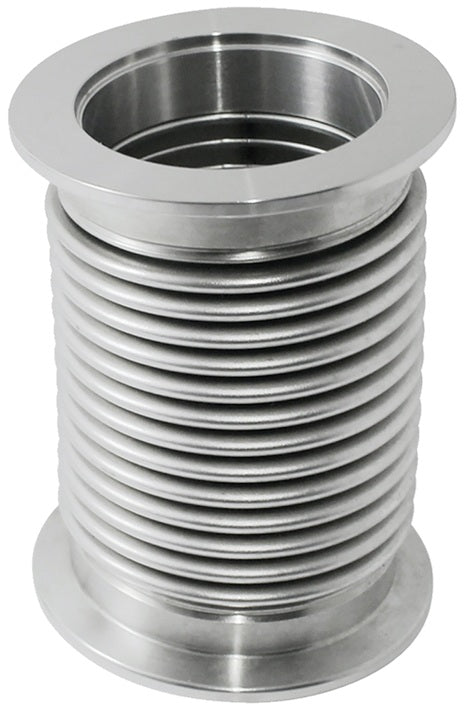

DVF-A25GG Dixon Valve KF Flex Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: KF25 - 304 Stainless Steel

DVF-A25GG Dixon Valve KF Flex Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: KF25 - 304 Stainless Steel

Save $76.02 Save $76.02
$190.05
$190.05 - $190.05
$190.05
$114.03
$114.03 - $114.03
$114.03

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Flex Bellow (Formed) - 304 Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Specifications for Variant SKU: DVF-A25GG Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A Length
DVF-A16GG KF16 1.18" 3.20"
DVF-A25GG KF25 1.58" 4.20"
DVF-A40GG KF40 2.17" 4.20"
DVF-A50GG KF50 2.95" 4.20"
