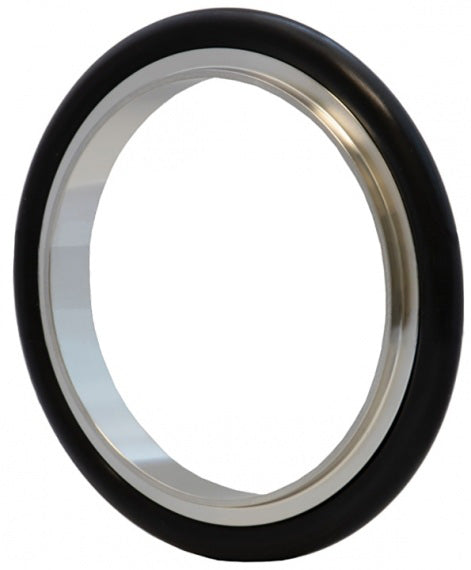

DVF-A40RE Dixon Valve KF Centering Ring Assembly for D-TORR Vacuum Fitting - Flange Size: KF40 - 316 Stainless Steel with FKM O-Ring

DVF-A40RE Dixon Valve KF Centering Ring Assembly for D-TORR Vacuum Fitting - Flange Size: KF40 - 316 Stainless Steel with FKM O-Ring

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Centering Ring Assembly - 316L Stainless Steel with FKM O-ring

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DVF-A40RE Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 316L Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B
DVF-A10RE KF10 0.48" 0.44"
DVF-A16RE KF16 0.67" 0.63"
DVF-A25RE KF25 1.02" 0.98"
DVF-A40RE KF40 1.61" 1.57"
DVF-A50RE KF50 2.05" 1.97"
