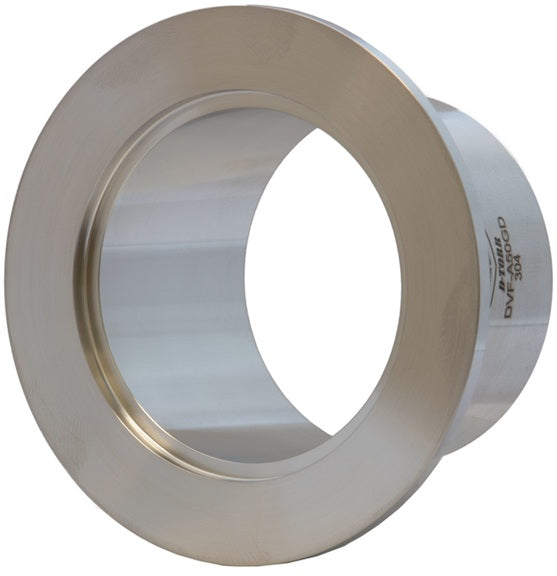

DVF-A50GD Dixon Valve KF Long Weld Flange for D-TORR Vacuum Fitting - Flange Size: KF50 - 304 Stainless Steel

DVF-A50GD Dixon Valve KF Long Weld Flange for D-TORR Vacuum Fitting - Flange Size: KF50 - 304 Stainless Steel

Save $26.07 Save $26.07
$65.18
$65.18 - $65.18
$65.18
$39.11
$39.11 - $39.11
$39.11

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Long Weld Flange - 304 Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Specifications for Variant SKU: DVF-A50GD Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 304 Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C D
DVF-A10GD KF10 1.18" 0.48" 0.37" 0.50"
DVF-A16GD KF16 1.18" 0.67" 0.62" 0.75"
DVF-A25GD KF25 1.58" 1.03" 0.87" 1.00"
DVF-A40GD KF40 2.17" 1.62" 1.37" 1.50"
DVF-A50GD KF50 2.95" 2.05" 1.87" 2.00"
