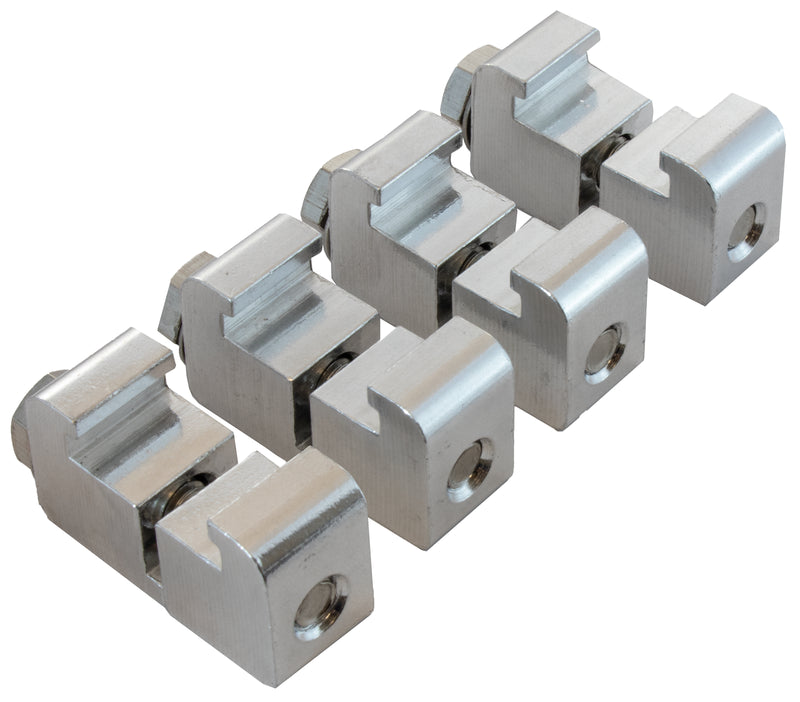

DVF-B160250LH Dixon Valve ISO Double Claw Clamp for D-TORR Vacuum Fitting - Flange Sizes: ISO160, ISO200, ISO250 - Aluminum (Pack of 4)

DVF-B160250LH Dixon Valve ISO Double Claw Clamp for D-TORR Vacuum Fitting - Flange Sizes: ISO160, ISO200, ISO250 - Aluminum (Pack of 4)

Save $19.77 Save $19.77
$49.42
$49.42 - $49.42
$49.42
$29.65
$29.65 - $29.65
$29.65

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Double Claw Clamp

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry

Package Quantity: 4 EA

Specifications for Variant SKU: DVF-B160250LH Dixon
Material(s): Aluminum
Features:
  • Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps.
  • Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure.
  • Multiple clamps must be used to ensure a sturdy connection.
  • ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges.
  • All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
  • Clamps: aluminum
  • O-ring: FKM
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Thread Size Qty. of Clamps Required Dimensions
A B C D E
DVF-B63100LH ISO63 5/16-18" 3 - 4 0.94" 1.96" 0.92" 0.78" 0.67"
DVF-B63100LH ISO80 5/16-18" 4 - 8 0.94" 1.96" 0.92" 0.78" 0.67"
DVF-B63100LH ISO100 5/16-18" 4 - 8 0.94" 1.96" 0.92" 0.78" 0.67"

DVF-B160250LH ISO160 5/16-18" 4 - 8 1.10" 1.96" 0.92" 0.78" 0.67"
DVF-B160250LH ISO200 5/16-18" 6 - 12 1.10" 1.96" 0.92" 0.78" 0.67"
DVF-B160250LH ISO250 5/16-18" 6 - 12 1.10" 1.96" 0.92" 0.78" 0.67"
