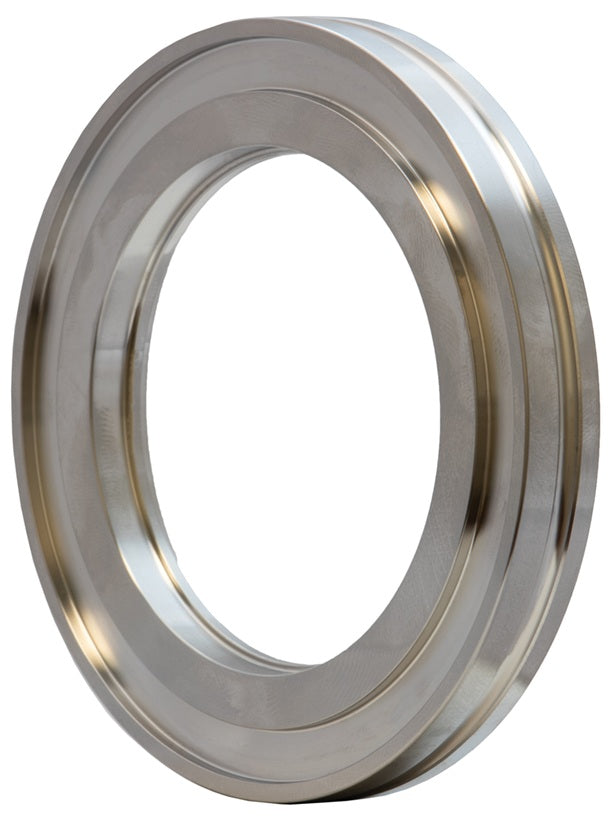

DVF-B250GA Dixon Valve ISO Bored Flange for D-TORR Vacuum Fitting - Flange Size: ISO250 - 304 Stainless Steel

DVF-B250GA Dixon Valve ISO Bored Flange for D-TORR Vacuum Fitting - Flange Size: ISO250 - 304 Stainless Steel

Save $121.81 Save $121.81
$304.52
$304.52 - $304.52
$304.52
$182.71
$182.71 - $182.71
$182.71

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Bored Flange - 304 Stainless Steel

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry
Specifications for Variant SKU: DVF-B250GA Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Features:
  • Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps.
  • Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure.
  • Multiple clamps must be used to ensure a sturdy connection.
  • ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges.
  • All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
  • Clamps: aluminum
  • O-ring: FKM
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C D
DVF-B63GA ISO63 3.74" 0.47" 2.44" 2.51"
DVF-B80GA ISO80 4.33" 0.47" 2.94" 3.01"
DVF-B100GA ISO100 5.12" 0.47" 3.91" 4.02"
DVF-B160GA ISO160 7.09" 0.47" 5.87" 6.03"
DVF-B200GA ISO200 9.45" 0.47" 7.87" 8.03"
DVF-B250GA ISO250 11.42" 0.47" 9.88" 10.02"
