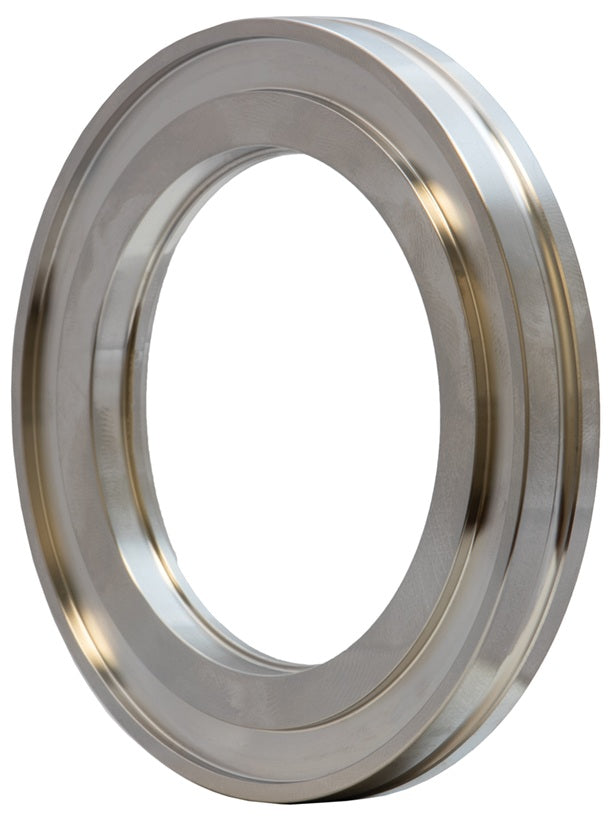

DVF-B63GA Dixon Valve ISO Bored Flange for D-TORR Vacuum Fitting - Flange Size: ISO63 - 304 Stainless Steel

Name: DVF-B63GA Dixon Valve ISO Bored Flange for D-TORR Vacuum Fitting - Flange Size: ISO63 - 304 Stainless Steel
Brand: Dixon
SKU: DVF-B63GA Dixon
Price: 42.57 USD
Availability: InStock

Save $28.38

$70.95

$70.95 - $70.95

$70.95

$42.57

$42.57 - $42.57

$42.57

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Bored Flange - 304 Stainless Steel

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry

Specifications for Variant SKU: DVF-B63GA Dixon
Shape (Orientation):	Straight
Material(s):	304 Stainless Steel

Features:
Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps. Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure. Multiple clamps must be used to ensure a sturdy connection. ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges. All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
Clamps: aluminum O-ring: FKM
Specifications:
Maximum temperature: 302°F (150°C) Helium leakage testing to 1x10^-8 Torr Standards followed: ISO2681

Part Number	Flange Size	Dimensions
Part Number	Flange Size	A	B	C	D
DVF-B63GA	ISO63	3.74"	0.47"	2.44"	2.51"
DVF-B80GA	ISO80	4.33"	0.47"	2.94"	3.01"
DVF-B100GA	ISO100	5.12"	0.47"	3.91"	4.02"
DVF-B160GA	ISO160	7.09"	0.47"	5.87"	6.03"
DVF-B200GA	ISO200	9.45"	0.47"	7.87"	8.03"
DVF-B250GA	ISO250	11.42"	0.47"	9.88"	10.02"
