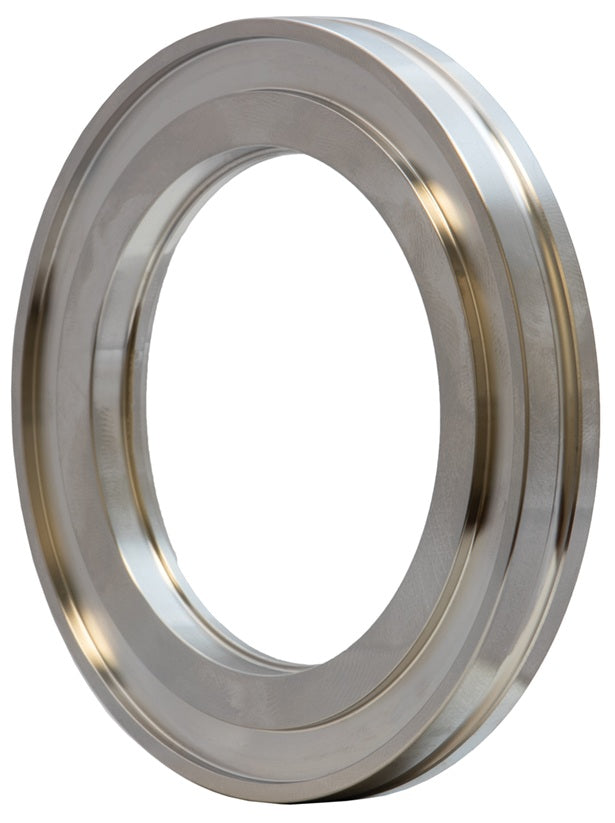

DVF-B80GA Dixon Valve ISO Bored Flange for D-TORR Vacuum Fitting - Flange Size: ISO80 - 304 Stainless Steel

DVF-B80GA Dixon Valve ISO Bored Flange for D-TORR Vacuum Fitting - Flange Size: ISO80 - 304 Stainless Steel

Save $4.17 Save $4.17
$37.50
$37.50 - $37.50
$37.50
$33.33
$33.33 - $33.33
$33.33

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Bored Flange - 304 Stainless Steel

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DVF-B80GA Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Features:
  • Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps.
  • Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure.
  • Multiple clamps must be used to ensure a sturdy connection.
  • ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges.
  • All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
  • Clamps: aluminum
  • O-ring: FKM
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C D
DVF-B63GA ISO63 3.74" 0.47" 2.44" 2.51"
DVF-B80GA ISO80 4.33" 0.47" 2.94" 3.01"
DVF-B100GA ISO100 5.12" 0.47" 3.91" 4.02"
DVF-B160GA ISO160 7.09" 0.47" 5.87" 6.03"
DVF-B200GA ISO200 9.45" 0.47" 7.87" 8.03"
DVF-B250GA ISO250 11.42" 0.47" 9.88" 10.02"
