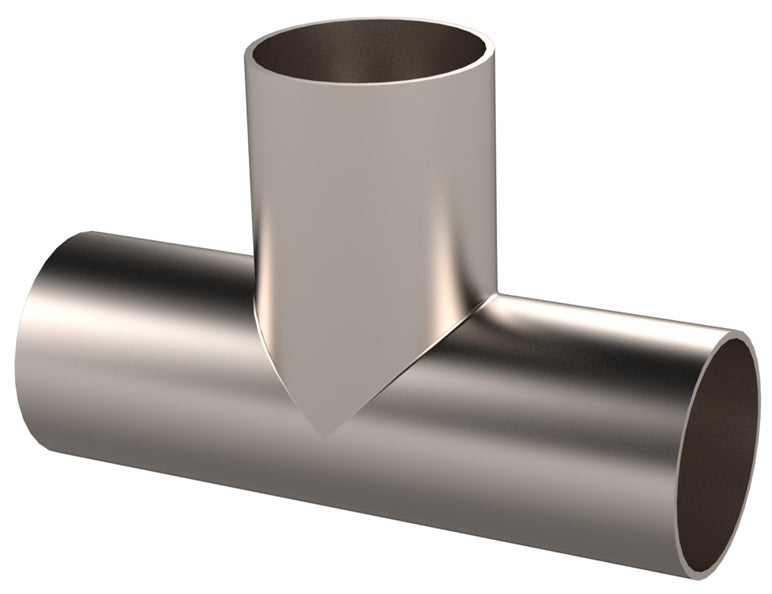

DVF-C150R1V Dixon Valve Vacuum Weld Fitting - Weld Tee for D-TORR Vacuum Fitting - 1-1/2" OD - 316L Stainless Steel

DVF-C150R1V Dixon Valve Vacuum Weld Fitting - Weld Tee for D-TORR Vacuum Fitting - 1-1/2" OD - 316L Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld Tee

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
Specifications for Variant SKU: DVF-C150R1V Dixon
Shape (Orientation): Tee
Material(s): 316L Stainless Steel
Application:
  • Use in high-vacuum and high-temperature applications.
Materials:
  • Polished 316L Stainless Steel
Specifications:
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ASTM A270, ASTM A269, and ASME SA270
Part Number OD Dimensions
A B C
DVF-C050R1V 1/2" 0.75" 0.50" 0.065"
DVF-C075R1V 3/4" 1.00" 0.75" 0.065"
DVF-C100R1V 1" 1.88" 1.00" 0.065"
DVF-C150R1V 1-1/2" 2.25" 1.50" 0.065"
DVF-C200R1V 2" 3.00" 2.00" 0.065"
DVF-C250R1V 2-1/2" 3.00" 2.50" 0.065"
DVF-C300R1V 3" 3.25" 3.00" 0.065"
DVF-C400R1V 4" 3.88" 4.00" 0.083"
DVF-C600R1V 6" 5.00" 6.00" -

Dimensions are approximate and subject to change at any time without notice.
