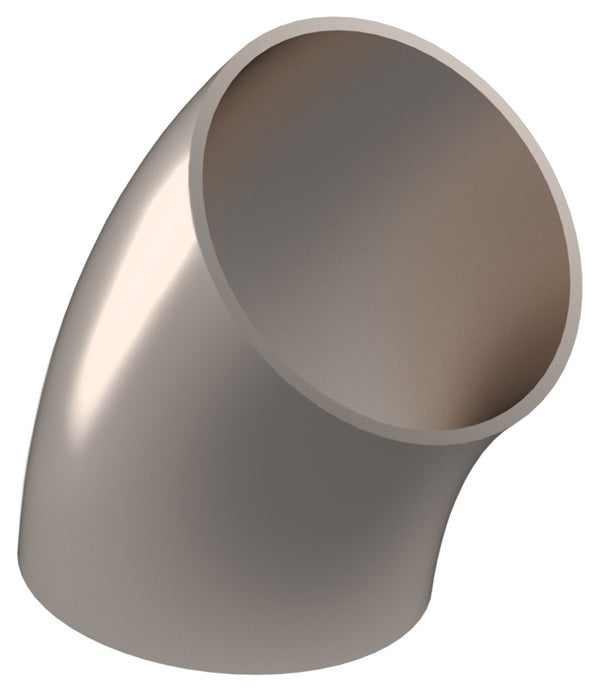

DVF-C200G1S Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow for D-TORR Vacuum Fitting - 2" OD - 304 Stainless Steel

Name: DVF-C200G1S Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow for D-TORR Vacuum Fitting - 2" OD - 304 Stainless Steel
Brand: Dixon
SKU: DVF-C200G1S Dixon
Price: 19.76 USD
Availability: InStock

$19.56 - $19.56

$19.56

$19.76

$19.76 - $19.76

$19.76

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 45° Elbow

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.

Quantity

Specifications for Variant SKU: DVF-C200G1S Dixon
Shape (Orientation):	45 Degree
Material(s):	304 Stainless Steel

Application:
Use in high-vacuum and high-temperature applications.
Materials:
Polished 304 Stainless Steel
Specifications:
Helium leakage testing to 1x10^-8 Torr Standards followed: ASTM A270, ASTM A269, and ASME SA270

Part Number	OD	Dimensions
Part Number	OD	A	R	B	C
DVF-C050G1S	1/2"	0.311"	0.750"	0.065"	0.500"
DVF-C075G1S	3/4"	0.41"	1.00"	0.065"	0.75"
DVF-C100G1S	1"	0.62"	1.50"	0.065"	1.00"
DVF-C150G1S	1-1/2"	0.93"	2.25"	0.065"	1.50"
DVF-C200G1S	2"	1.24"	3.00"	0.065"	2.00"
DVF-C250G1S	2-1/2"	1.55"	3.75"	0.065"	2.50"
DVF-C300G1S	3"	1.86"	4.50"	0.065"	3.00"
DVF-C400G1S	4"	2.49"	6.00"	0.083"	4.00"
DVF-C600G1S	6"	3.73"	9.00"	0.109"	6.00"

Dimensions are approximate and subject to change at any time without notice.
