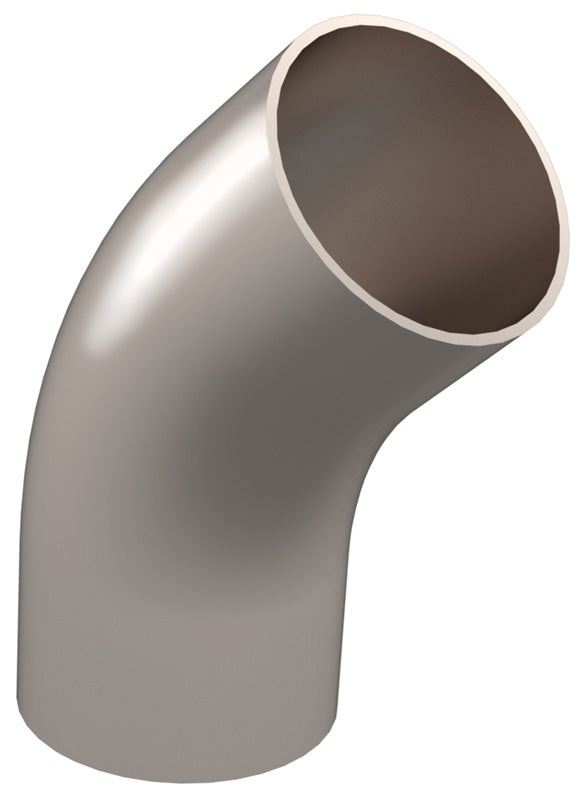

DVF-C400G1T Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow with Tangent for D-TORR Vacuum Fitting - 4" OD - 304 Stainless Steel

DVF-C400G1T Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow with Tangent for D-TORR Vacuum Fitting - 4" OD - 304 Stainless Steel

$100.34 - $100.34
$100.34
$101.35
$101.35 - $101.35
$101.35

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: Vacuum Weld Fitting - Weld 45° Elbow with Tangent

Dixon® manufactures high-quality weld fittings for use in high-vacuum and high-temperature applications.

Each part is crafted with precision to ensure a leak-free fit. All fittings are IPA cleaned and bagged in a controlled environment.
Specifications for Variant SKU: DVF-C400G1T Dixon
Shape (Orientation): 45 Degree
Material(s): 304 Stainless Steel
Application:
  • Use in high-vacuum and high-temperature applications.
Materials:
  • Polished 304 Stainless Steel
Specifications:
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ASTM A270, ASTM A269, and ASME SA270
Part Number OD Dimensions
A R B C
DVF-C075G1T 3/4" 0.76" 1.00" 0.065" 0.75"
DVF-C100G1T 1" 1.19" 1.50" 0.065" 1.00"
DVF-C150G1T 1-1/2" 1.63" 2.25" 0.065" 1.50"
DVF-C200G1T 2" 2.31" 3.00" 0.065" 2.00"
DVF-C250G1T 2-1/2" 3.00" 3.75" 0.065" 2.50"
DVF-C300G1T 3" 3.68" 4.50" 0.065" 3.00"
DVF-C400G1T 4" 4.81" 6.00" 0.083" 4.00"
DVF-C600G1T 6" 7.33" 9.00" 0.109" 6.00"

Dimensions are approximate and subject to change at any time without notice.
