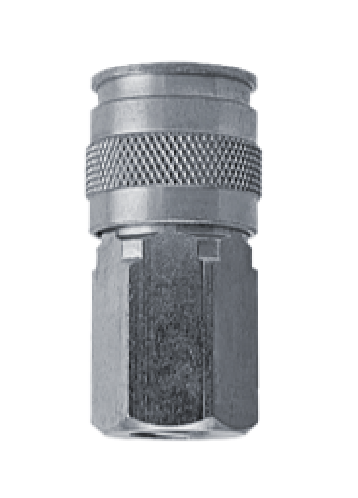

DW360A Breco by Foster | U Series | Quick Disconnect | 1/4" Universal Coupler x 3/8" Female NPT Thread | Straight | Steel

Save $5.76

$12.47

$12.47 - $12.47

$12.47

$6.71

$6.71 - $6.71

$6.71

Foster Quick Disconnects - U Series 1/4" Universal Couplers - Breco

Specifications for Variant SKU: DW360A ZSi-Foster
Brand:	Breco
Series:	U Series
Shape (Orientation):	Straight
Material(s):	Steel

Universal Coupler Overview
Features: The ¼" Universal Coupler will accept the Industrial Interchange series, "J" series (Tru-Flate) & "O" Series (ARO-210) Plugs. The coupler features automatic push-to-connect operation, high flow machined "window valve" and a sleeve guard which helps prevent accidental disconnects and protects the sleeve from damage. While the best quick coupling performance is obtained by matching like series sockets and plugs, the universal coupler permits multiple series plugs to mate with one socket.
Specifications: Rated Pressure (psig): 150 Temperature Range (Nitrile seal): -40° to +250°F Locking Device: Stainless Steel balls Vacuum Service: Not Recommended

Part Number	Socket Size	FPT	Description
B-2UF2-B	1/4"	1/4"	Brass
DW340A	1/4"	1/4"	Steel
DW360A	1/4"	3/8"	Steel
DW440A	3/8"	1/4"	Steel
DW460A	3/8"	3/8"	Steel

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
