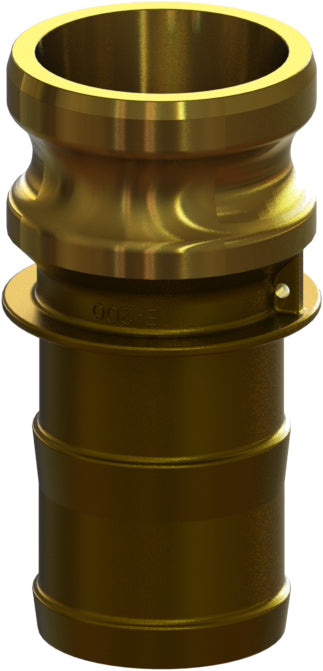

E-BR-300 by Campbell Fittings | Standard Cobra Cam & Groove Coupling | Type E | 3" Adapter x 3" Hose Shank | Brass

E-BR-300 by Campbell Fittings | Standard Cobra Cam & Groove Coupling | Type E | 3" Adapter x 3" Hose Shank | Brass

Save $52.21 Save $52.21
$130.52
$130.52 - $130.52
$130.52
$78.31
$78.31 - $78.31
$78.31

by Campbell
Standard Cobra Cam & Groove Couplings:Brass Part E (for use with sleeves or bands)
Specifications for Variant SKU: E-BR-300 Campbell Fittings
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3in Female Cam & Groove, 3in Hose Barb
Material(s): Brass
Recommended Use:
  • Multi-purpose liquid, chemical, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • 360 interlock groove on fitting locks ferrule into place for the ultimate in holding power.
  • Shank and ferrule lengths are matched for performance and avoid potential hose tube or hose cover damage.
  • Serrations designed to grip, seal, and protect hose when crimped. Note: Traditional "two bump" designs are for banding, not crimping. NAHAD and Campbell do not recommend crimping on "two bump" shanks.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
  • Couplings and Goodyear Instalock Cam & Groove Couplings to keep your inventory as flexible as possible.
  • Designed to couple and interchanging made to ASTM F112, CID A-A-59326, MIL-C-27512.
Part Number Hose Size
E-BR-75 3/4"
E-BR-100 1"
E-BR-125 1-1/4"
E-BR-150 1-1/2"
E-BR-200 2"
E-BR-250 2-1/2"
E-BR-300 3"
E-BR-400 4"
E-BR-500 5"
E-BR-600 6"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
