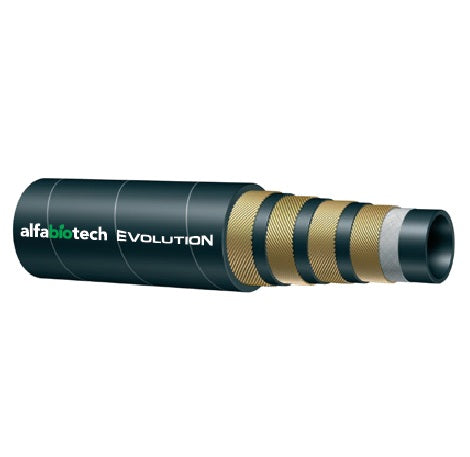

E4K-24 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E4K Series | 4-Wire | Minetuff Hydraulic Hose | 1-1/2" ID | 1.99" OD | 4000 PSI | 200ft Length

Save $2,068.53

$7,239.86

$7,239.86 - $7,239.86

$7,239.86

$5,171.33

$5,171.33 - $5,171.33

$5,171.33

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E4K Series | 4000 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.

Package Quantity: 200 Units

Specifications for Variant SKU: E4K-24 Kuriyama \| 200 \|
Brand:	Alfabiotech Evolution
Series:	E4K Series
Hose Color(s):	Black
Dash Size:	-24
Internal Diameter:	1.5in
Outer Diameter:	1.99in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	EN856 4SP, ISO 18752, MSHA IC-152/16
Compatible with the following Series:	S Series \| AS4 Series \| XF2 Series \| YS2 Series

SPECIFICATIONS

Other Features:
Application:	Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.	SAE Rating:	SAE 100R12 (3/4" and 1")
Other Ratings:	ISO 18752/CC 1,000,000+ impulse cycles MSHA IC-152/16 approved flame resistance EN856 4SP (1-1/2" and 2")	Tube:	Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement:	Four high tensile steel spirals	Cover:	Smooth up to 1", Wrapped over 1", abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range:	-40°F (-40°C) to +250°F (+121°C)	Specifications	-
Branding:	ALFAGOMMA ALFABIOTECH EVOLUTION 4K MINETUFF ... WP 28 MPa (4000 PSI) - ISO 18752/CC - MSHA IC152/16 - MADE IN ITALY
MineTuff Cover Extremely Flexible

Part Number	ID		OD		Max. Working Pressure at 68°F	Min Bend Radius		Standard Length	Weight
Part Number	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(ft.)	(lbs./ft.)
E4K-06	3/8"	9.5mm	0.78"	19.8mm	4000 PSI	2.95"	75.0mm	By the Foot	0.42 lbs
E4K-08	1/2"	12.7mm	0.89"	22.5mm	4000 PSI	3.54"	90.0mm	By the Foot	0.42 lbs
E4K-10	5/8"	15.9mm	1.00"	25.4mm	4000 PSI	3.94"	100.0mm	By the Foot	0.60 lbs
E4K-12	3/4"	19.1mm	1.14"	29.0mm	4000 PSI	4.72"	120.0mm	By the Foot	0.66 lbs
E4K-16	1"	25.4mm	1.46"	37.2mm	4000 PSI	5.91"	150.0mm	By the Foot	1.00 lbs
E4K-20	1-1/4"	31.8mm	1.74"	44.2mm	4000 PSI	8.27"	210.0mm	200ft	1.49 lbs
E4K-24	1-1/2"	38.1mm	1.99"	50.6mm	4000 PSI	9.84"	250.0mm	200ft	1.76 lbs
E4K-32	2"	50.8mm	2.55"	64.7mm	4000 PSI	12.52"	318.0mm	200ft	2.69 lbs
