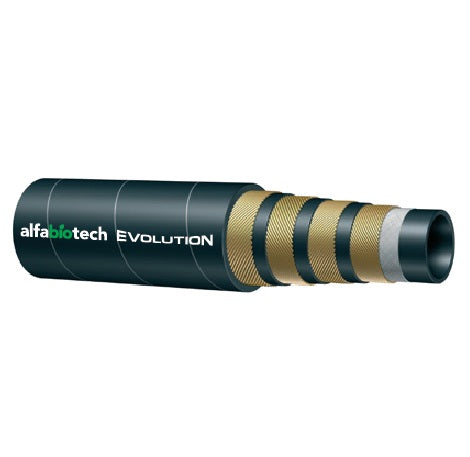

E4K-32 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E4K Series | 4-Wire | Minetuff Hydraulic Hose | 2" ID | 2.55" OD | 4000 PSI

E4K-32 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E4K Series | 4-Wire | Minetuff Hydraulic Hose | 2" ID | 2.55" OD | 4000 PSI | 200ft Length

Save $2,932.80 Save $2,932.80
$10,264.80
$10,264.80 - $10,264.80
$10,264.80
$7,332.00
$7,332.00 - $7,332.00
$7,332.00

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E4K Series | 4000 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.


Package Quantity: 200 Units

Specifications for Variant SKU: E4K-32 Kuriyama | 200 |
Brand: Alfabiotech Evolution
Series: E4K Series
Hose Color(s): Black
Dash Size: -32
Internal Diameter: 2in
Outer Diameter: 2.55in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: EN856 4SP, ISO 18752, MSHA IC-152/16
Compatible with the following Series: S Series  |   AS4 Series  |   XF2 Series  |   YS2 Series

SPECIFICATIONS

Application: Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing. SAE Rating: SAE 100R12 (3/4" and 1")
Other Ratings: ISO 18752/CC 1,000,000+ impulse cycles
MSHA IC-152/16 approved flame resistance
EN856 4SP (1-1/2" and 2")		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement: Four high tensile steel spirals Cover: Smooth up to 1", Wrapped over 1", abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C) Specifications -
Branding: ALFAGOMMA ALFABIOTECH EVOLUTION 4K MINETUFF ... WP 28 MPa (4000 PSI) - ISO 18752/CC - MSHA IC152/16 - MADE IN ITALY
Other Features:
  • MineTuff Cover
  • Extremely Flexible
Part Number ID OD Max. Working
Pressure
at 68°F		 Min Bend
Radius		 Standard
Length		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (ft.) (lbs./ft.)
E4K-06 3/8" 9.5mm 0.78" 19.8mm 4000 PSI 2.95" 75.0mm By the Foot 0.42 lbs
E4K-08 1/2" 12.7mm 0.89" 22.5mm 4000 PSI 3.54" 90.0mm By the Foot 0.42 lbs
E4K-10 5/8" 15.9mm 1.00" 25.4mm 4000 PSI 3.94" 100.0mm By the Foot 0.60 lbs
E4K-12 3/4" 19.1mm 1.14" 29.0mm 4000 PSI 4.72" 120.0mm By the Foot 0.66 lbs
E4K-16 1" 25.4mm 1.46" 37.2mm 4000 PSI 5.91" 150.0mm By the Foot 1.00 lbs
E4K-20 1-1/4" 31.8mm 1.74" 44.2mm 4000 PSI 8.27" 210.0mm 200ft 1.49 lbs
E4K-24 1-1/2" 38.1mm 1.99" 50.6mm 4000 PSI 9.84" 250.0mm 200ft 1.76 lbs
E4K-32 2" 50.8mm 2.55" 64.7mm 4000 PSI 12.52" 318.0mm 200ft 2.69 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
