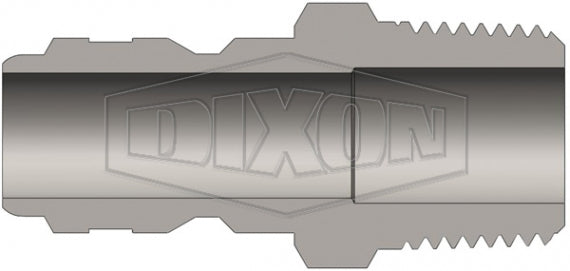

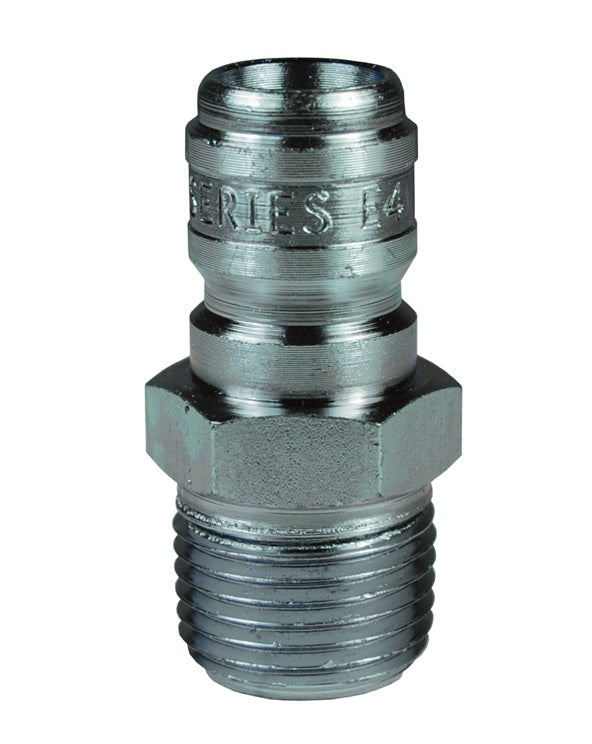

E4M4-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/2" Male NPTF x 1/2" Straight-Through Interchange | Plug | 303 Stainless Steel
E4M4-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/2" Male NPTF x 1/2" Straight-Through Interchange | Plug | 303 Stainless Steel
E4M4-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/2" Male NPTF x 1/2" Straight-Through Interchange | Plug | 303 Stainless Steel

E4M4-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | E-Series | 1/2" Male NPTF x 1/2" Straight-Through Interchange | Plug | 303 Stainless Steel

Save $2.12 Save $2.12
$19.07
$19.07 - $19.07
$19.07
$16.95
$16.95 - $16.95
$16.95

Dixon Valve & Coupling
Hydraulic Coupling: E-Series Straight-Through Interchange Plug (Male Threads)
Specifications for Variant SKU: E4M4-S Dixon
Series: E-Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Male Straight-Thru QD Interchange
Material(s): 303 Stainless Steel
Compatibility & Interchange:
  • Straight-through pressure-wash interchange
  • Parker ST-Series, Foster FST-Series, Hansen ST-Series
Features:
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop.
Construction:
  • Machined components are manufactured using solid steel, brass, or 303 stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • 1-1/4" to 2" brass couplers have steel sleeves as standard to maximize service life, hardened to resist deformation.
  • Steel plugs are hardened to provide heavy-duty performance.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Do Not Disconnect with pressure in line.
  • Dixon cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
Additional Information:
E-Series | Straight-Through Interchange (Connected) Rated Pressure Chart
Body
Size		 Brass Coupler/Steel Plug Brass Coupler/Plug 303 Stainless Steel
Coupler/Plug		 Locking Ball
Quantity		 Flow
ΔP = 30 PSI
Max. Working Burst Max. Working Burst Max. Working Burst
1/8" 2,600 PSI
(179 Bar)		 10,400 PSI
(717 Bar)		 2,500 PSI
(172 Bar)		 10,000 PSI
(689 Bar)		 4,200 PSI
(290 Bar)		 16,800 PSI
(1,158 Bar)		 6 3 GPM
1/4" 5,500 PSI
(379 Bar)		 22,000 PSI
(1,517 Bar)		 5,200 PSI
(359 Bar)		 20,800 PSI
(1,434 Bar)		 6,700 PSI
(462 Bar)		 26,800 PSI
(1,848 Bar)		 6 6 GPM
3/8" 3,500 PSI
(241 Bar)		 14,000 PSI
(966 Bar)		 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 5,500 PSI
(379 Bar)		 22,000 PSI
(1,517 Bar)		 8 14 GPM
1/2" 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 2,200 PSI
(152 Bar)		 8,800 PSI
(607 Bar)		 3,000 PSI
(207 Bar)		 12,000 PSI
(827 Bar)		 8 24 GPM
3/4" 2,700 PSI
(186 Bar)		 10,800 PSI
(745 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 3,000 PSI
(207 Bar)		 12,000 PSI
(827 Bar)		 8 58 GPM
1" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,200 PSI
(83 Bar)		 4,800 PSI
(331 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 8 100 GPM
1-1/4" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,700 PSI
(117 Bar)		 6,800 PSI
(469 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 150 GPM
1-1/2" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,400 PSI
(97 Bar)		 5,600 PSI
(386 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 250 GPM
2" 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 1,400 PSI
(97 Bar)		 5,600 PSI
(386 Bar)		 2,000 PSI
(138 Bar)		 8,000 PSI
(552 Bar)		 8 350 GPM
E-Series | Straight-Through Interchange Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
E1M1 Plug/Male 1/8" 1/8" - 27 Female NPTF Steel 1.15"
(29.2mm)		 0.58"
(14.7mm)		 1/2"
E1M1-B Plug/Male 1/8" 1/8" - 27 Female NPTF Brass 1.15"
(29.2mm)		 0.58"
(14.7mm)		 1/2"
E1M1-S Plug/Male 1/8" 1/8" - 27 Female NPTF 303 Stainless 1.15"
(29.2mm)		 0.58"
(14.7mm)		 1/2"
E2M2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.50"
(38.1mm)		 0.65"
(16.5mm)		 9/16"
E2M2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.50"
(38.1mm)		 0.65"
(16.5mm)		 9/16"
E2M2-S Plug/Male 1/4" 1/4" - 18 Female NPTF 303 Stainless 1.50"
(38.1mm)		 0.65"
(16.5mm)		 9/16"
E3M3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.69"
(42.9mm)		 0.79"
(20.1mm)		 11/16"
E3M3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.69"
(42.9mm)		 0.79"
(20.1mm)		 11/16"
E3M3-S Plug/Male 3/8" 3/8" - 18 Female NPTF 303 Stainless 1.69"
(42.9mm)		 0.79"
(20.1mm)		 11/16"
E4M4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 1.91"
(48.5)		 1.01"
(25.7mm)		 7/8"
E4M4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 1.91"
(48.5)		 1.01"
(25.7mm)		 7/8"
E4M4-S Plug/Male 1/2" 1/2" - 14 Female NPTF 303 Stainless 1.91"
(48.5mm)		 1.01"
(25.7mm)		 7/8"
E6M6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.25"
(57.2mm)		 1.23"
(31.2mm)		 1-1/16"
E6M6-B Plug/Male 3/4" 3/4" - 14 Female NPTF Brass 2.25"
(57.2mm)		 1.23"
(31.2mm)		 1-1/16"
E6M6-S Plug/Male 3/4" 3/4" - 14 Female NPTF 303 Stainless 2.25"
(57.2mm)		 1.23"
(31.2mm)		 1-1/16"
E8M8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 2.45"
(62.2mm)		 1.59"
(40.4mm)		 1-3/8"
E8M8-B Plug/Male 1" 1" - 11-1/2 Female NPTF Brass 2.45"
(62.2mm)		 1.59"
(40.4mm)		 1-3/8"
E8M8-S Plug/Male 1" 1" - 11-1/2 Female NPTF 303 Stainless 2.45"
(62.2mm)		 1.59"
(40.4mm)		 1-3/8"
E10M10 Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Steel 2.80"
(71.1mm)		 2.02"
(51.3mm)		 1-3/4"
E10M10-B Plug/Male 1-1/4" 1-1/4" - 11-1/2 Female NPTF Brass 2.80"
(71.1mm)		 2.02"
(51.3mm)		 1-3/4"
E12M12 Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Steel 3.38"
(85.9mm)		 2.60"
(66.0mm)		 2-1/4"
E12M12-B Plug/Male 1-1/2" 1-1/2" - 11-1/2 Female NPTF Brass 3.38"
(85.9mm)		 2.60"
(66.0mm)		 2-1/4"
E16M16 Plug/Male 2" 2" - 11-1/2 Female NPTF Steel 3.58"
(90.9mm)		 3.03"
(77.0mm)		 2-5/8"
E16M16-B Plug/Male 2" 2" - 11-1/2 Female NPTF Brass 3.58"
(90.9mm)		 3.03"
(77.0mm)		 2-5/8"
E-Series | Straight-Through Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Thread Size Material Length Max.
OD		 Hex
1EM1-B Socket/Male 1/8" 1/8" - 27 Female NPTF Brass 1.01"
(25.7mm)		 0.65"
(16.5mm)		 9/16"
1EM1-S Socket/Female 1/8" 1/8" - 27 Female NPTF 303 Stainless 1.01"
(25.7mm)		 0.65"
(16.5mm)		 9/16"
2EM2-B Socket/Female 1/4" 1/4" - 18 Female NPTF Brass 1.66"
(42.2mm)		 0.96"
(24.4mm)		 13/16"
2EM2-S Socket/Female 1/4" 1/4" - 18 Female NPTF 303 Stainless 1.66"
(42.2mm)		 0.96"
(24.4mm)		 13/16"
3EM3-B Socket/Female 3/8" 3/8" - 18 Female NPTF Brass 1.70"
(43.2mm)		 1.13"
(28.7mm)		 1"
E3F3-S Socket/Female 3/8" 3/8" - 18 Female NPTF 303 Stainless 1.70"
(43.2mm)		 1.13"
(28.7mm)		 1"
4EM4-B Socket/Female 1/2" 1/2" - 14 Female NPTF Brass 2.00"
(50.8mm)		 1.27"
(32.3mm)		 1-1/8"
4EM4-S Socket/Female 1/2" 1/2" - 14 Female NPTF 303 Stainless 2.00"
(50.8mm)		 1.27"
(32.3mm)		 1-1/8"
6EM6-B Socket/Female 3/4" 3/4" - 14 Female NPTF Brass 2.24"
(56.9mm)		 1.65"
(41.9mm)		 1-1/2"
6EM6-S Socket/Female 3/4" 3/4" - 14 Female NPTF 303 Stainless 2.24"
(56.9mm)		 1.65"
(41.9mm)		 1-1/2"
8EM8-B Socket/Female 1" 1" - 11-1/2 Female NPTF Brass 2.61"
(66.3mm)		 2.02"
(51.3mm)		 1-3/4"
8EM8-S Socket/Female 1" 1" - 11-1/2 Female NPTF 303 Stainless 2.61"
(66.3mm)		 2.02"
(51.3mm)		 1-3/4"
10EM10-B Socket/Female 1-1/4" 1-1/4" - 11-1/2 Female NPTF Brass 2.91"
(73.9mm)		 2.59"
(65.8mm)		 2-1/4"
12EM12-B Socket/Female 1-1/2" 1-1/2" - 11-1/2 Female NPTF Brass 3.44"
(87.4mm)		 3.18"
(80.8mm)		 2-3/4"
16EM16-B Socket/Female 2" 2" - 11-1/2 Female NPTF Brass 3.70"
(94.0mm)		 4.04"
(102.6mm)		 3-1/2"
