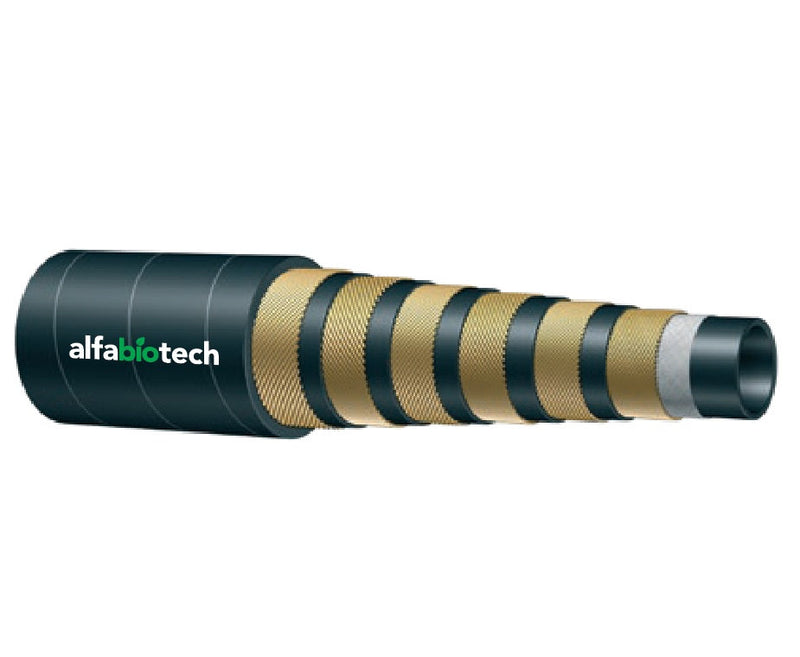

E5K-32 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E5K Series | 6-Wire | Minetuff Hydraulic Hose | 2" ID | 2.70" OD | 5000 PSI | 100ft Length

Save $1,896.53

$6,637.86

$6,637.86 - $6,637.86

$6,637.86

$4,741.33

$4,741.33 - $4,741.33

$4,741.33

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E5K Series | 5000 PSI Minetuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.

Package Quantity: 100 Units

Specifications for Variant SKU: E5K-32 Kuriyama \| 100 \|
Brand:	Alfabiotech Evolution
Series:	E5K Series
Hose Color(s):	Black
Dash Size:	-32
Internal Diameter:	2in
Outer Diameter:	2.70in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	SAE 100R13, ISO 18752, MSHA IC-152/16
Compatible with the following Series:	S Series \| F Series \| ZF1 Series \| YS1 Series

SPECIFICATIONS

Other Features:
Application:	Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.	SAE Rating:	SAE 100R13
Other Ratings:	EN856 4SP (5/8", 3/4" and 1") EN856 4SH (1-1/4") ISO 18752/CC 1,000,000+ impulse cycles MSHA IC-152/16 approved flame resistance	Tube:	Oil and biodegradeable hydraulic fluid resistant synthetic rubber
Reinforcement:	Four/six high tensile steel spirals	Cover:	Smooth up to 1", Wrapped over 1", abrasion, ozone and hydrocarbon resistant synthetic rubber
Service Temperature Range:	-40°F (-40°C) to +250°F (+121°C)	Specifications	-
Branding:	ALFAGOMMA ALFABIOTECH EVOLUTION 5K MINETUFF ... WP 35 MPa (5000 PSI) - ISO 18752/CC - MSHA IC-152/16 - MADE IN ITALY
MineTuff Cover Extremely Flexible

Part Number	ID		OD		Max. Working Pressure at 68°F	Min Bend Radius		Standard Length	Weight
Part Number	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(ft.)	(lbs./ft.)
E5K-10	5/8"	15.9mm	1.00"	25.4mm	5000 PSI	3.94"	100.0mm	By the Foot	0.57 lbs
E5K-12	3/4"	19.1mm	1.16"	29.4mm	5000 PSI	4.72"	120.0mm	By the Foot	0.79 lbs
E5K-16	1"	25.4mm	1.47"	37.4mm	5000 PSI	5.91"	150.0mm	By the Foot	1.10 lbs
E5K-20	1-1/4"	31.8mm	1.73"	44.0mm	5000 PSI	8.27"	210.0mm	200ft	1.49 lbs
E5K-24	1-1/2"	38.1mm	2.16"	54.8mm	5000 PSI	9.84"	250.0mm	200ft	2.64 lbs
E5K-32	2"	50.8mm	2.70"	68.7mm	5000 PSI	12.52"	318.0mm	200ft	3.89 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
