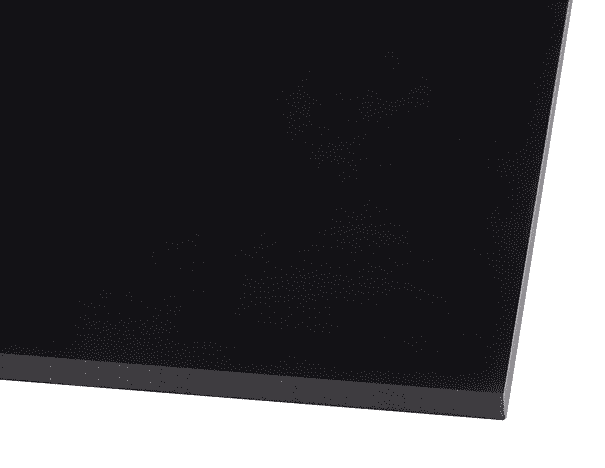

E60-02x48x100 by Kuriyama | Commercial Grade EPDM Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/16" x 48" | 100ft Roll

E60-02x48x100 by Kuriyama | Commercial Grade EPDM Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/16" x 48" | 100ft Roll

Save $328.80 Save $328.80
$1,150.80
$1,150.80 - $1,150.80
$1,150.80
$822.00
$822.00 - $822.00
$822.00

Kuriyama Industrial Sheet Rubber - EPDM Sheet

Package Quantity: 100 FT

Specifications for Variant SKU: E60-02X48X100 Kuriyama | 100 |

SPECIFICATIONS

Styles: E60: 60 Duro hardness (Shore Durometer A) Polymer: Ethylene-Propylene-Diene-Monomer
Common Name: Ethylene-Propylene Rubber ISO/ASTM Designation: EPDM
Features & Properties:
  • Good ozone, chemical and aging resistance.
  • (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition)
  • Acid Resistance
  • Alkali Resistance
  • Compression Set Resilience
  • Excellent Ozone, Chemical and Aging Resistance
  • Gas Resistance
  • Gas Permeability Resistance
  • Good physical properties
  • Heat Aging Abrasion Resistance
  • Oil Resistance
  • Tear Flame Resistance
  • Weathering Ozone Resistance
Part Number Gauge x Width in. ASTM Specification (SI units) Temp. Range Durometer Tensile Strength (PSI) Elongation (%) Finish Avg. Length (Linear Ft. /Roll) Weight (Lbs/Roll)
E60-02x36x67 1/16" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 67ft 92 lbs
E60-02x36x100 1/16" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 100ft 137 lbs
E60-04x36x50 1/8" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 50ft 137 lbs
E60-04x36x67 1/8" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 67ft 183 lbs
E60-06x36x36 3/16" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 36ft 148 lbs
E60-08x36x36 1/4" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 36ft 197 lbs
E60-08x36x50 1/4" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 50ft 274 lbs
E60-02x48x67 1/16" x 48" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 67ft 122 lbs
E60-02x48x100 1/16" x 48" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 100ft 182 lbs
E60-02x36x67 1/16" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 67ft 182 lbs
E60-04x48x50 1/8" x 48" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 50ft 182 lbs
E60-04x48x67 1/8" x 36" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 67ft 244 lbs
E60-06x48x36 3/16" x 48" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 36ft 197 lbs
E60-08x48x36 1/4" x 48" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 36ft 263 lbs
E60-08x48x50 1/4" x 48" D 2000 M2BA 608 -20 deg. F to +230 deg. F 55 - 65 1100 PSI 350% Plate 50ft 365 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
