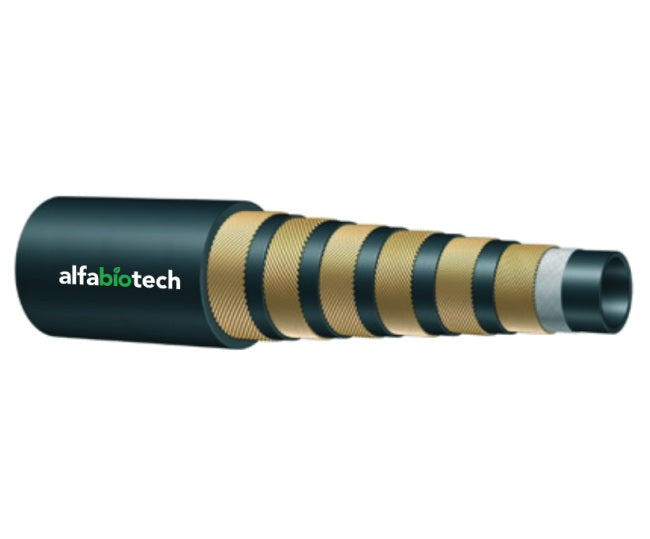

E6KST-20 Alfagomma by Kuriyama | Alfabiotech Evolution Series | E6KST Series | 6-Wire | Supertuff Hydraulic Hose | 1-1/4" ID | 1.87" OD | 6000 PSI | 100ft Length

Save $1,491.47

$5,220.14

$5,220.14 - $5,220.14

$5,220.14

$3,728.67

$3,728.67 - $3,728.67

$3,728.67

Kuriyama of America Inc.
Alfagomma | Alfabiotech Evolution Series | E6KST Series | 6000 PSI Supertuff Hydraulic Hose

Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.

Package Quantity: 100 Units

Specifications for Variant SKU: E6KST-20 Kuriyama \| 100 \|
Brand:	Alfabiotech Evolution
Series:	E6KST Series
Hose Color(s):	Black
Dash Size:	-20
Internal Diameter:	1.25in
Outer Diameter:	1.87in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	SAE 100R15, ISO 18752/CC, MSHA IC-152/7
Compatible with the following Series:	S Series \| F Series \| XF1 Series \| YS1 Series

SPECIFICATIONS

Other Features:
Application:	Developed to withstand very demanding conditions; very high performance in pressure, pulsing and flexing.	SAE Rating:	SAE 100R15 (1" through 2")
Other Ratings:	EN856 4SP (1/4", 3/8" and 1/2") EN856 4SH (3/4" and 1") ISO 18752/CC 1,000,000+ impulse cycles MSHA IC-152/7 approved flame resistance	Tube:	Oil resistant synthetic rubber and biodegradable hydraulic fluids
Reinforcement:	Four/six high tensile steel spirals(4S/6S)	Cover:	Abrasion, ozone and hydrocarbon resistant synthetic rubber: Special "supertuff" cover for excellent abrasion resistance and long service life in heavy duty applications
Service Temperature Range:	-40°F (-40°C) to +250°F (+121°C)	Specifications	-
Branding:	ALFAGOMMA ALFABIOTECH EVOLUTION 6K SUPERTUFF ... WP 45 MPa (6550 PSI) - ISO 18752/CC- MSHA IC- 152/7 - MADE IN ITALY
SuperTuff Cover Extremely Flexible

Part Number	ID		OD		Max. Working Pressure at 68°F	Min Bend Radius		Standard Length	Weight
Part Number	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(ft.)	(lbs./ft.)
E6KST-04	1/4"	6.4mm	0.67"	17.0mm	6000 PSI	2.36"	60.0mm	Random	0.35 lbs
E6KST-06	3/8"	9.5mm	0.78"	19.8mm	6000 PSI	2.95"	75.0mm	Random	0.42 lbs
E6KST-08	1/2"	12.7mm	0.89"	22.5mm	6000 PSI	3.54"	90.0mm	Random	0.48 lbs
E6KST-10	5/8"	15.9mm	1.09"	27.8mm	6000 PSI	3.94"	100.0mm	Random	0.80 lbs
E6KST-12	3/4"	19.1mm	1.20"	30.6mm	6000 PSI	4.72"	120.0mm	Random	0.93 lbs
E6KST-16	1"	25.4mm	1.50"	38.2mm	6000 PSI	5.91"	150.0mm	Random	1.30 lbs
E6KST-20	1-1/4"	31.8mm	1.87"	47.6mm	6000 PSI	8.86"	225.0mm	100 ft	2.01 lbs
E6KST-24	1-1/2"	38.1mm	2.14"	54.4mm	6000 PSI	12.01"	305.0mm	100 ft	2.80 lbs
E6KST-32	2"	50.8mm	2.70"	68.7mm	6000 PSI	14.96"	380.0mm	100 ft	4.09 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
