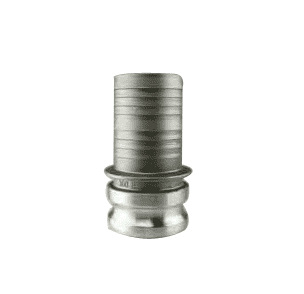

E801A by Jason Industrial | 8" Cam and Groove | Part E | Male Adapter x Hose Shank | Aluminum

E801A by Jason Industrial | 8" Cam and Groove | Part E | Male Adapter x Hose Shank | Aluminum

Save $2.29 Save $2.29
$228.81
$228.81 - $228.81
$228.81
$226.52
$226.52 - $226.52
$226.52

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part E - Male Adapter x Hose Shank - Aluminum
Specifications for Variant SKU: E801A Jason
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 8in Male Cam & Groove, 8in Hose Barb
Material(s): Aluminum
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Male end fits female coupler or Dust Cap.
  • Shank fits into hose ID.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • The 8" comes in two different styles. That size will interchange as follows:
    • Jason 800 series interchanges with PT Domestic, Kuriyama of America, Dixon Global and Campbell.
    • Jason 801 series interchanges with PT Import, NECO, Dixon Andrews, Evertite/APG, UPD and Sealfast
  • Aluminum body features being lightweight, rigid and having high tensile strength.
  • Female couplers are supplied with safety pins.
  • Cam arms are 304 Stainless.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
Material Specs:
  • Aluminum alloy spec ASTM B85 Grade 383.
  • 304 Type stainless steel handles.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
E075A 3/4" 250 PSI
E100A 1" 250 PSI
E125A 1-1/4" 250 PSI
E150A 1-1/2" 250 PSI
E200A 2" 250 PSI
E250A 2-1/2" 150 PSI
E300A 3" 125 PSI
E400A 4" 100 PSI
E500A 5" 75 PSI
E600A 6" 75 PSI
E800A 8" 50 PSI
E801A 8" 50 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
