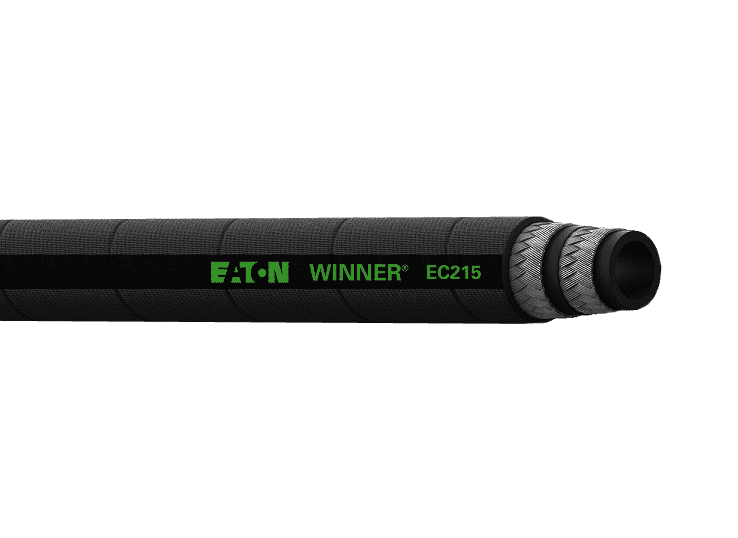

EC215-12LRL Winner by Danfoss Eaton | EC215 2-Wire Hydraulic Hose (SAE 100R16) | -12 Hose | EC215-12

EC215-12LRL Winner by Danfoss | EC215 | 2-Wire Hydraulic Hose | SAE 100R16 | -12 Hose

$4.51 - $451.81
$4.51
$4.51 - $451.81
$4.51

Priced BULK by the foot, to guarantee exact length you must contact us for a quote.

EC215 Eaton Aeroquip Winner Two Wire Braided Hose

Meets or Exceeds SAE 100R16 Type S, EN 857 TYPE 2SC, ISO 11237-1 Type 2SC
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EC215-12LRL Danfoss
Series: EC215 Series

SPECIFICATIONS

Application: Hydraulic system service with petroleum and waterbased fluids, for general industrial service. For more information on specific fluid applications and high temperature ratings see the Fluid Compatibility Chart link below.
Rating: Meets EN 857 Type 2SC, MSHA Approved Tube: Synthetic rubber
Reinforcement: Double wire braid Cover: Synthetic rubber
Temperature Range: -40°C to +100°C (-40°F to +212°F) Crimp Fittings: Crimp Fittings, Two-piece Winner Fittings
Fluid Compatibility Chart: Fluid Compatibility Chart
Part Number Hose I.D. Hose O.D. Maximum Operating Pressure Minimum Burst Pressure Minimum Bend Radius Weight of Hose
mm in mm in bar psi bar psi mm in Kg/m lbs/ft
EC215-04LRL 6.4 0.25 13.5 0.53 400 5,800 1,600 23,200 45 1.77 0.28 0.19
EC215-06LRL 9.5 0.38 17.5 0.69 330 4,800 1,320 19,200 65 2.56 0.41 0.28
EC215-08LRL 12.7 0.50 20.8 0.82 275 4,000 1,100 16,000 80 3.15 0.57 0.38
EC215-10LRL 15.9 0.62 24.0 0.94 250 3,650 1,000 14,600 90 3.54 0.68 0.46
EC215-12LRL 19.0 0.75 27.9 1.10 215 3,125 860 12,500 120 4.72 0.81 0.54

Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Eaton and Eaton Aeroquip handbooks for the most accurate and up to date data and specifics. All liability of Eaton products warrantied and guaranteed by manufacturer. Warning!

Eaton hose and fittings are engineered to match Eaton Aeroquip hose and fitting tolerances. The use of Eaton fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Eaton Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions. Bulk / By the Foot: We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with Eaton Aeroquip guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.
