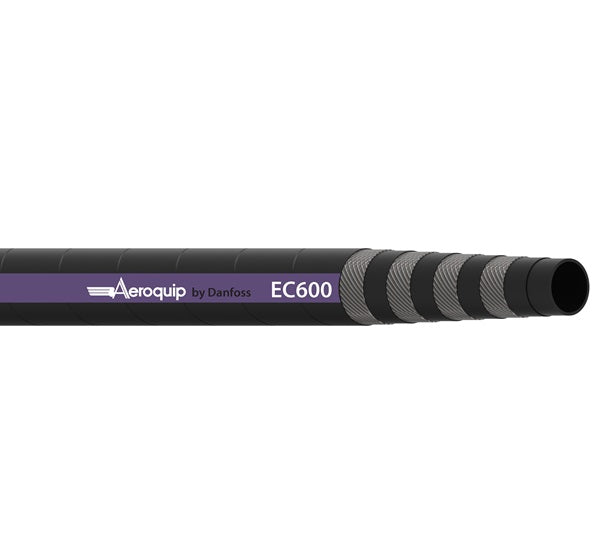

| Hose Properties: |
| Application: |
High-pressure hydraulics, hydrostatic transmissions.
Hydraulic system with petroleum and water-glycol base fluids, for lubricants oils and water. |
SAE Rating: |
Exceeds: SAE 100R15, ISO 18752 performance |
| Other Ratings: |
MSHA Accepted, DNV, ABS, U.S. Coast Guard |
Tube: |
Synthetic Rubber |
| Reinforcement: |
4-Spiral Wire -12, -16
6-Spiral Sire -20, -24, -32 |
Cover: |
DURA-TUFF™ Synthetic Rubber |
| Temperature Range: |
(-40°F to +250°F)
(-40°C to +121°C) |
|
|
| Part Number |
Hose ID |
Nominal Hose OD |
Max. Operating Pressure |
Min. Burst Pressure |
Min. Bend Radius |
Weight |
| DN |
mm |
in |
mm |
in |
bar |
psi |
bar |
psi |
mm |
in |
kg/m |
lbs/ft |
| EC600-12 |
19 |
19,0mm |
0.75" |
32,3mm |
1.27" |
420 bar |
6100 psi |
1680 bar |
24400 psi |
135,0mm |
5.31" |
1,52 kg/m |
1.01 lbs/ft |
| EC600-16 |
25 |
25,4mm |
1.00" |
38,6mm |
1.52" |
420 bar |
6100 psi |
1680 bar |
24400 psi |
165,0mm |
6.50" |
2,04 kg/m |
1.36 lbs/ft |
| EC600-20 |
31 |
31,8mm |
1.25" |
49,8mm |
1.96" |
420 bar |
6100 psi |
1680 bar |
24400 psi |
225,0mm |
8.86" |
3,89 kg/m |
2.61 lbs/ft |
| EC600-24 |
38 |
38,1mm |
1.50" |
57,4mm |
2.26" |
420 bar |
6100 psi |
1680 bar |
24400 psi |
265,0mm |
10.43" |
4,83 kg/m |
3.24 lbs/ft |
| EC600-32* |
50 |
50,8mm |
2.00" |
70,9mm |
2.79" |
420 bar |
6100 psi |
1680 bar |
24400 psi |
375,0mm |
14.76" |
7,10 kg/m |
4.77 lbs/ft |
* With the 6S fitting the -32 size working pressure is 380 bar (5500 psi) with a 4:1 safety factor.
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
