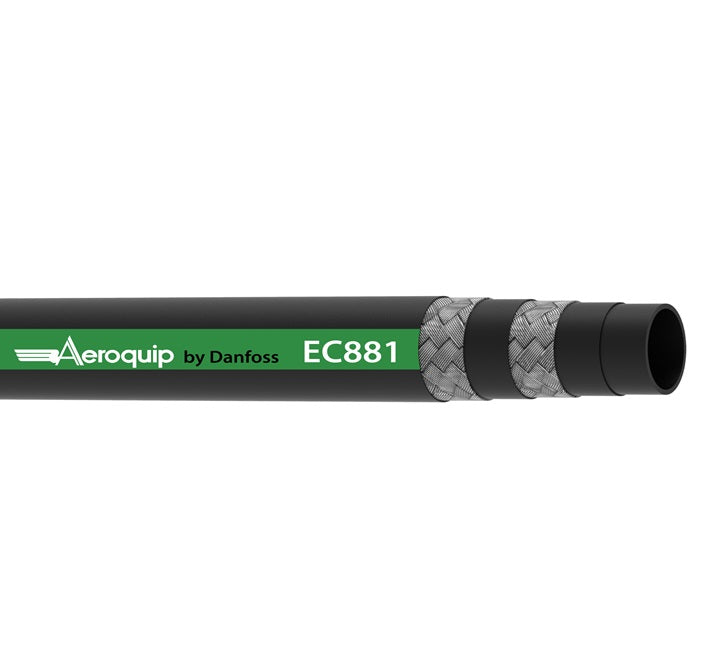

EC881-4 Aeroquip by Danfoss | Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose | SAE 100R16 | SAE 100R19 | 0.25" Hose ID

EC881-4 Aeroquip by Danfoss | Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose | SAE 100R16 | SAE 100R19 | 0.25" Hose ID

$8.29 - $8.29
$8.29
$8.29 - $8.29
$8.29

Aeroquip® by Danfoss
EC881 Series | Premium Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose

This Dynamax ultra-performance hose with the Danfoss Dura-Pulse inner tube combines the lightweight flexibility of a two-wire braided hose with the pressure and performance of spiral 100R12 hoses (-16 and smaller).

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EC881-4 Danfoss
Brand: Aeroquip
Series: EC881 Series
Hose Color(s): Black
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.54in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE 100R16, SAE 100R19
Hose Properties:
Application: Hydraulic systems with petroleum and water-based fluids, for general industrial service SAE Rating: Exceeds: SAE 100R16 | SAE 100R19 | EN 857 2SC | ISO 18752
Other Ratings: ABS | DNV | MSHA Tube: Dura-Pulse Patented Tube
Reinforcement: Two Wire braid Cover: DURA-TUFF™ Premium Abrasion
Operating Temperature Range: -50°F to +260°F (-46°C to +126°C)
-50ºF to +158ºF (-46ºC to +70ºC) for water based hyd. fluids
+32ºF to 158ºF (0ºC to +70ºC) for water
Part Number Hose ID Nominal Hose OD Working Pressure Min. Burst Pressure Min. Bend Radius Weight
mm in mm in bar psi bar psi mm in kg/m lbs/ft
EC881-4 6.4mm 0.25" 13.6mm 0.54" 450 bar 6,525 psi 1,800 bar 26,100 psi 33,0mm 1.30" 0.32 kg/m 0.22 lbs/ft
EC881-5 8.0mm 0.31" 15.50mm 0.61" 400 bar 5,800 psi 1,600 bar 23,200 psi 38,10mm 1.50" - -
EC881-6 9.5mm 0.38" 17.3mm 0.68" 400 bar 5,800 psi 1,600 bar 23,200 psi 42,0mm 1.65" 0.42 kg/m 0.28 lbs/ft
EC881-8 12.7mm 0.50" 20.9mm 0.82" 360 bar 5,220 psi 1,440 bar 20,880 psi 60,0mm 2.36" 0.58 kg/m 0.39 lbs/ft
EC881-10 15.9mm 0.62" 24.0mm 0.94" 350 bar 5,075 psi 1,400 bar 20,300 psi 68,0mm 2.68" 0.75 kg/m 0.50 lbs/ft
EC881-12 19.0mm 0.75" 27.9mm 1.10" 330 bar 4,785 psi 1,320 bar 19,140 psi 80,0mm 3.15" 1.03 kg/m 0.69 lbs/ft
EC881-16 25.4mm 1.00" 34.6mm 1.36" 280 bar 4,060 psi 1,120 bar 16,240 psi 150,0mm 5.91" 1.47 kg/m 0.99 lbs/ft
EC881-20 31.8mm 1.25" 43.4mm 1.71" 172 bar 2,500 psi 688 bar 9,980 psi 210,0mm 8.27" 1.75 kg/m 1.18 lbs/ft
EC881-24 38.1mm 1.50" 51.8mm 2.04" 138 bar 2,000 psi 552 bar 8,000 psi 250,0mm 9.84" 1.91 kg/m 1.28 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
