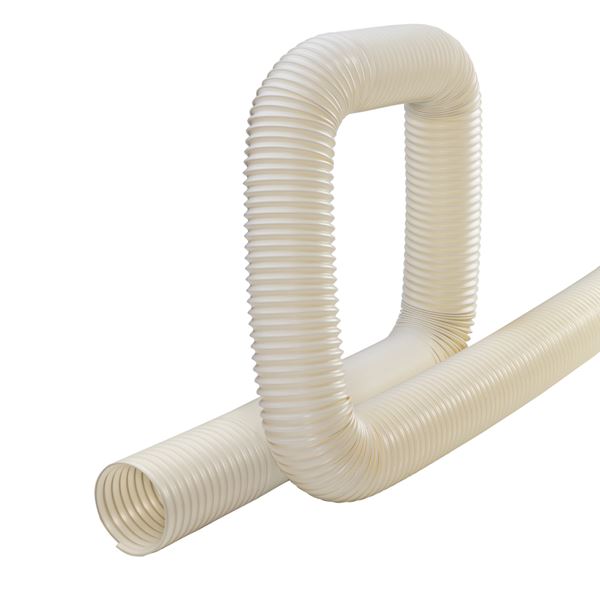

EDW-200X20 Tiger-Duct® by Kuriyama | Extendo-Duct® | EDW™ Series | Extendible / Contractible Ducting Hose | 2" ID | 2.26" OD | White | 20ft Length

Save $182.90

$260.54

$260.54 - $260.54

$260.54

$77.64

$77.64 - $77.64

$77.64

Tiger-Duct® by Kuriyama
Extendo-Duct® | EDB™ / EDW™ Series | Extendible / Contractible Self-Supporting Polypropylene Ducting Hose

Features interlock construction: two sections can be joined by twisting them together. No mender required.

Ideal for air movement and ventilation in systems such as air conditioning, spot cooling, heating, clean rooms, and chemical fume exhaust, as well as OEM equipment applications. Not intended for liquid handling.

Made in the USA.

Package Quantity: 20 Foot

Specifications for Variant SKU: EDW-200X20 Kuriyama \| 20 \|
Brand:	Tiger-Duct
Series:	Extendo-Duct, EDW Series
Hose Color(s):	White
Internal Diameter:	2in
Outer Diameter:	2.26in
Tubing Construction:	Polypropylene

General Applications:
Air conditioning, spot cooling and heating systems Clean room and chemical fume exhaust Ducting, ventilation & fume removal Dust control Not for liquid handling use OEM equipment applications
Construction:

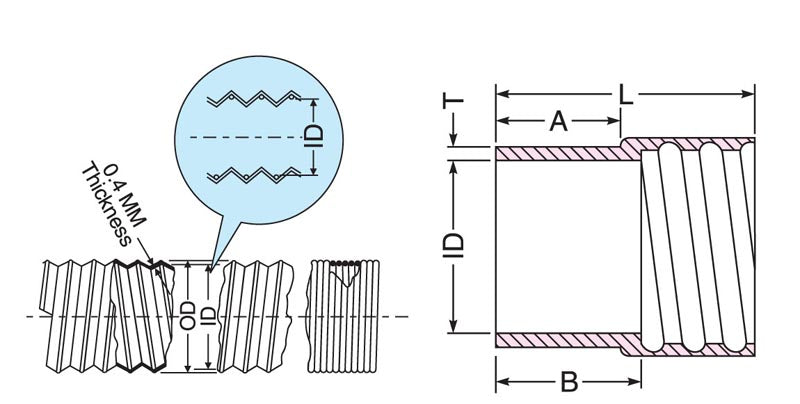

Extendable/contractible polypropylene tube with coated steel wire helix.
Specifications:
Phthalate Free
Service Temperature Range:
-4°F (-20°C) to +175°F (+80°C)* *Actual service temperature range is application dependent
Features and Advantages:
Polypropylene Tube - Inert polypropylene material produces no off-gassing and is resistant to a wide variety of chemical fumes, making it ideal for a wide variety of clean room and fume exhaust applications. Extendible and Contractible - Hose extends easily and can be contracted to approximately one-third of full extended length for storage, shipping or where the full length is not required. Self-supporting - Unique construction allows the hose to maintain it shape and support itself once positioned. Steel Wire Helix - Coated steel wire provides strength and allows for use at higher temperatures without risk of hose deformation. Well suited for high cycle applications. Interlock Construction - Two sections can be joined by twisting them together. No mender required. Phthalate Free.
Notes:
Service life may vary depending on operating conditions and type of material being conveyed.

Brown Part Number 25ft Length	White Part Number 25ft Length	ID		OD		Working Pressure (PSI)		Vacuum Rating		Min. Bend Radius	Approx. Contracted Shipping Length Hose Only	Weight
Brown Part Number 25ft Length	White Part Number 25ft Length	in	mm	in	mm	at 68°F	at 104°F	at 68°F	at 104°F	at 68°F	in	(lbs/ft)
EDB-150X20	EDW-150X20	1-1/2"	37.5mm	1.63"	41.5mm	20 PSI	7 PSI	22 in Hg	14 in Hg	1.2"	85"	0.10 lbs/ft
EDB-200X20	EDW-200X20	2"	53.5mm	2.26"	57.5mm	13 PSI	6 PSI	21 in Hg	12 in Hg	1.6"	82"	0.12 lbs/ft
EDB-250X20	EDW-250X20	2-1/2"	67.0mm	2.80"	71.0mm	10 PSI	5 PSI	19 in Hg	10 in Hg	2.0"	72"	0.16 lbs/ft
EDB-300X20	EDW-300X20	3"	76.5mm	3.17"	80.5mm	10 PSI	5 PSI	18 in Hg	10 in Hg	2.3"	72"	0.18 lbs/ft
EDB-400X20	EDW-400X20	4"	102.0mm	4.17"	106.0mm	8 PSI	4 PSI	13 in Hg	7 in Hg	3.0"	70"	0.23 lbs/ft
EDB-500X20	EDW-500X20	5"	127.5mm	5.18"	131.5mm	7 PSI	3 PSI	10 in Hg	6 in Hg	4.3"	70"	0.27 lbs/ft
EDB-600X20	EDW-600X20	6"	155.0mm	6.26"	159.0mm	6 PSI	3 PSI	7 in Hg	5 in Hg	5.1"	70"	0.33 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
