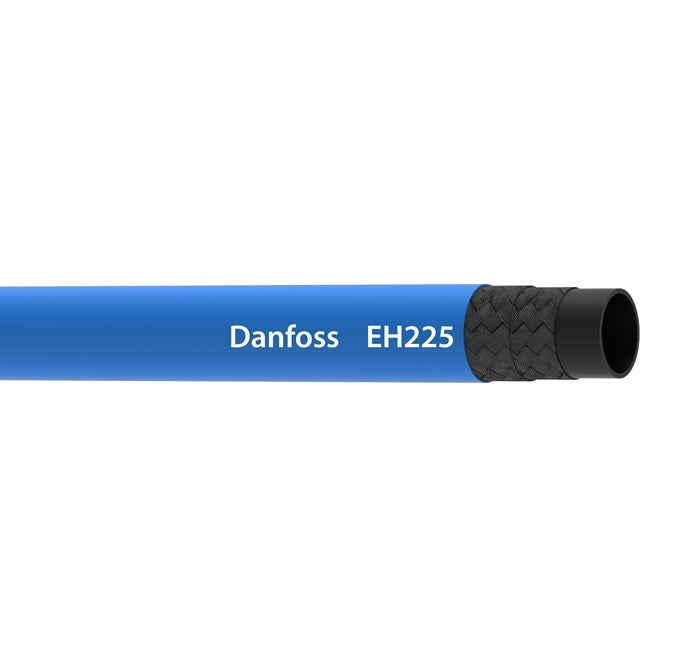

EH22510 Aeroquip by Danfoss | Truck & Engine Heater Hose | SAE J20 R3 Class A | 0.63" ID | Box of 25ft

$221.74 - $221.74

$221.74

$221.74 - $221.74

$221.74

Aeroquip® by Danfoss
EH225 Series | Truck & Engine Heater Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Package Quantity: 25 ft

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EH22510 Danfoss \| 25 \|
Brand:	Aeroquip
Series:	EH225 Series
Hose Color(s):	Blue
Internal Diameter:	0.63in
Outer Diameter:	0.93in
Tubing Construction:	Silicone
Applicable Specs & Approvals:	SAE J20 R3 Class A

Hose Properties:
Application:	Heater Engine.	SAE Rating:	Meets: SAE J20 R3 Class A
Other Ratings:	N/A	Tube:	Silicone
Reinforcement:	Single Ply Polyester Braid	Cover:	Blue Silicone
Temperature Range:	-65°F to +350°F (-54°C to +177°C)

Part Number	Hose ID		Hose OD		Min. Burst Pressure		Length
Part Number	mm	in	mm	in	bar	psi	ft/box
EH22504	6,40mm	0.25"	11,70mm	0.46"	28,0 bar	400 Psi	25 ft/box
EH22505	7,90mm	0.31"	13,20mm	0.52"	21,0 bar	300 Psi	25 ft/box
EH22506	9,70mm	0.38"	16,30mm	0.64"	17,0 bar	250 Psi	25 ft/box
EH22508	12,70mm	0.50"	19,30mm	0.76"	17,0 bar	250 Psi	25 ft/box
EH22510	16,00mm	0.63"	23,60mm	0.93"	17,0 bar	250 Psi	25 ft/box
EH22512	19,10mm	0.75"	27,20mm	1.07"	14,0 bar	200 Psi	25 ft/box
EH22514	22,40mm	0.88"	31,50mm	1.24"	14,0 bar	200 Psi	25 ft/box
EH22516	25,40mm	1.00"	35,10mm	1.38"	12,0 bar	175 Psi	25 ft/box

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
