EH22696 Aeroquip by Danfoss | Truck & Engine Coolant Hose | SAE J20 R1 Class A | 6.00" ID | 3ft Length

EH22696 Aeroquip by Danfoss | Truck & Engine Coolant Hose | SAE J20 R1 Class A | 6.00" ID | 3ft Length

$445.79 - $445.79
$445.79
$445.79 - $445.79
$445.79

Aeroquip® by Danfoss

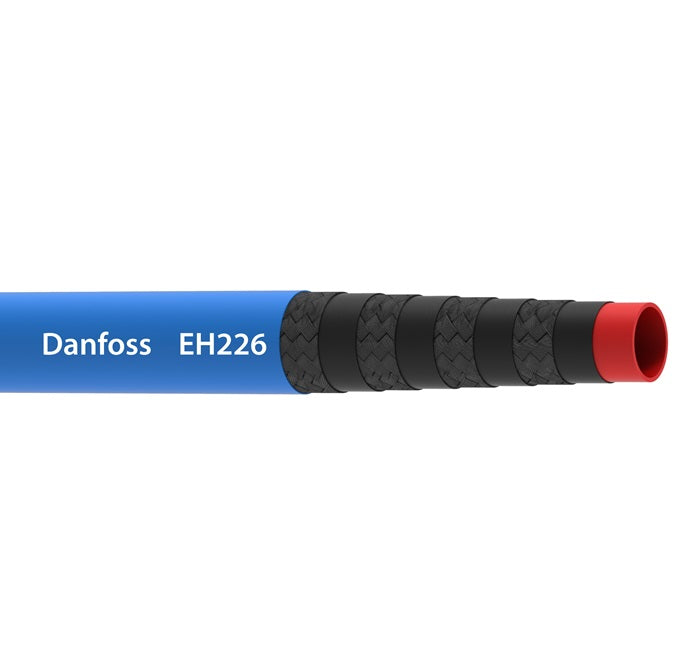

EH226 Series | Truck & Engine Coolant Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Package Quantity: 3 ft

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EH22696 Danfoss | 3 |
Brand: Aeroquip
Series: EH226 Series
Hose Color(s): Blue
Internal Diameter: 6.00in
Outer Diameter: 6.37in
Tubing Construction: Silicone
Applicable Specs & Approvals: SAE J20 R1 Class A
Hose Properties:
Application: Coolant Engine. SAE Rating: Meets: SAE J20 R1 Class A
Other Ratings: N/A Tube: Silicone
Reinforcement: 4-ply Woven Polyester Cover: Blue
Temperature Range: -65°F to +350°F
(-54°C to +177°C)
Part Number Hose ID Hose OD Min. Burst Pressure Length
mm in mm in bar psi ft/box
EH22606 8,70mm 0.38" 19,10mm 0.75" 73,10 bar 1060 Psi 3 ft/box
EH22608 12,70mm 0.50" 22,10mm 0.87" 60,10 bar 872 Psi 3 ft/box
EH22610 15,70mm 0.62" 25,10mm 0.99" 55,00 bar 797 Psi 3 ft/box
EH22612 19,10mm 0.75" 28,40mm 1.12" 52,70 bar 764 Psi 3 ft/box
EH22614 22,40mm 0.88" 31,80mm 1.25" 50,50 bar 732 Psi 3 ft/box
EH22616 25,40mm 1.00" 34,80mm 1.37" 48,20 bar 699 Psi 3 ft/box
EH22617 26,90mm 1.06" 36,60mm 1.44" 46,70 bar 678 Psi 3 ft/box
EH22618 28,70mm 1.13" 38,10mm 1.50" 45,40 bar 658 Psi 3 ft/box
EH22620 31,80mm 1.25" 41,10mm 1.62" 42,50 bar 617 Psi 3 ft/box
EH22622 35,10mm 1.38" 44,40mm 1.75" 37,90 bar 550 Psi 3 ft/box
EH22624 38,10mm 1.50" 47,50mm 1.87" 35,90 bar 521 Psi 3 ft/box
EH22626 41,10mm 1.62" 50,50mm 1.99" 34,50 bar 501 Psi 3 ft/box
EH22628 44,40mm 1.75" 53,80mm 2.12" 32,60 bar 473 Psi 3 ft/box
EH22630 47,80mm 1.88" 57,20mm 2.25" 31,00 bar 450 Psi 3 ft/box
EH22632 50,80mm 2.00" 60,20mm 2.37" 30,50 bar 442 Psi 3 ft/box
EH22634 54,10mm 2.13" 63,50mm 2.50" 29,30 bar 425 Psi 3 ft/box
EH22636 57,20mm 2.25" 66,50mm 2.62" 28,50 bar 413 Psi 3 ft/box
EH22638 60,50mm 2.38" 69,90mm 2.75" 27,60 bar 400 Psi 3 ft/box
EH22640 63,50mm 2.50" 72,90mm 2.87" 26,10 bar 379 Psi 3 ft/box
EH22642 66,50mm 2.62" 75,90mm 2.99" 24,20 bar 351 Psi 3 ft/box
EH22644 69,80mm 2.75" 79,20mm 3.12" 23,30 bar 338 Psi 3 ft/box
EH22646 73,20mm 2.88" 82,60mm 3.25" 22,10 bar 321 Psi 3 ft/box
EH22648 76,20mm 3.00" 85,60mm 3.37" 21,90 bar 317 Psi 3 ft/box
EH22650 79,50mm 3.13" 88,90mm 3.50" 21,20 bar 308 Psi 3 ft/box
EH22652 82,60mm 3.25" 91,90mm 3.62" 20,50 bar 298 Psi 3 ft/box
EH22654 85,90mm 3.38" 95,20mm 3.75" 19,00 bar 275 Psi 3 ft/box
EH22656 86,90mm 3.50" 98,30mm 3.87" 18,20 bar 264 Psi 3 ft/box
EH22660 95,20mm 3.75" 104,60mm 4.12" 17,20 bar 249 Psi 3 ft/box
EH22664 101,60mm 4.00" 111,00mm 4.37" 16,10 bar 233 Psi 3 ft/box
EH22666 104,90mm 4.13" 114,60mm 4.51" N/A N/A 3 ft/box
EH22668 108,00mm 4.25" 117,90mm 4.84" N/A N/A 3 ft/box
EH22672 114,30mm 4.50" 123,70mm 4.87" N/A N/A 3 ft/box
EH22680 127,00mm 5.00" 136,40mm 5.37" N/A N/A 3 ft/box
EH22688 139,70mm 5.50" 149,10mm 5.87" N/A N/A 3 ft/box
EH22696 152,40mm 6.00" 161,80mm 6.37" N/A N/A 3 ft/box

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
