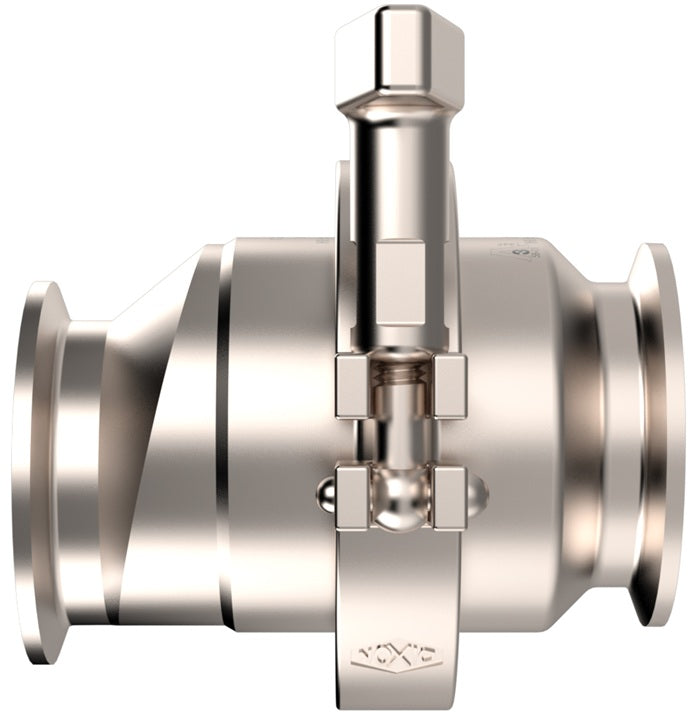

EHSCE300 Dixon Valve EHSC Spring Check Valve - 3" Clamp Connection - EPDM Gasket - 316L Stainless Steel

EHSCE300 Dixon Valve EHSC Spring Check Valve - 3" Clamp Connection - EPDM Gasket - 316L Stainless Steel

Save $279.53 Save $279.53
$698.82
$698.82 - $698.82
$698.82
$419.29
$419.29 - $419.29
$419.29

Dixon Sanitary Fittings EHSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Specifications for Variant SKU: EHSCE300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Sanitary Clamp End, 3in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCE050 1/2" 10.0 PSI 145 PSI
EHSCE075 3/4" 4.0 PSI -
EHSCE100 1" 2.5 PSI -
EHSCE150 1-1/2" 1.0 PSI -
EHSCE200 2" 1.5 PSI -
EHSCE250 2-1/2" 0.8 PSI -
EHSCE300 3" 0.5 PSI -
EHSCE400 4" 0.4 PSI -
