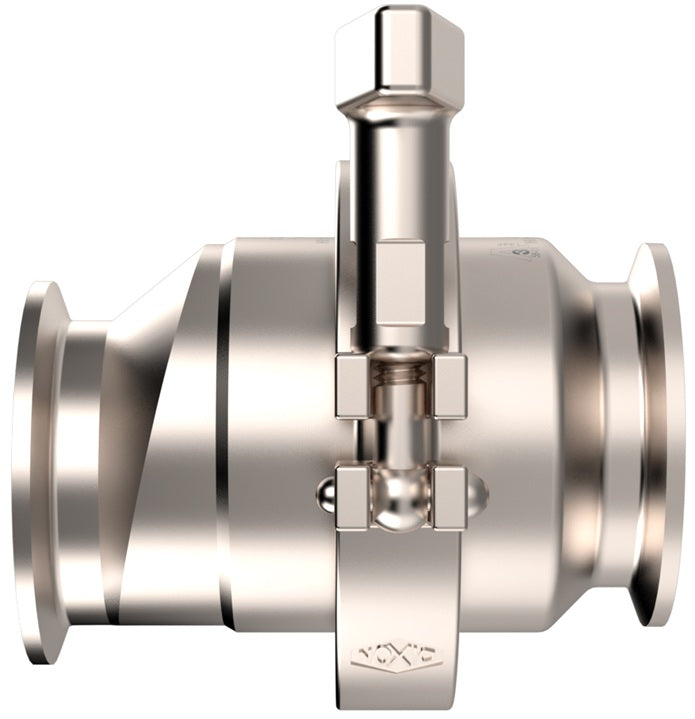

EHSCV400 Dixon Valve EHSC Spring Check Valve - 4" Clamp Connection - FKM Gasket - 316L Stainless Steel

EHSCV400 Dixon Valve EHSC Spring Check Valve - 4" Clamp Connection - FKM Gasket - 316L Stainless Steel

Save $95.42 Save $95.42
$753.30
$753.30 - $753.30
$753.30
$657.88
$657.88 - $657.88
$657.88

Dixon Sanitary Fittings EHSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Specifications for Variant SKU: EHSCV400 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Sanitary Clamp End, 4in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Machined from solid bar
  • Standard O-ring (FKM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCV050 1/2" 10.0 PSI 145 PSI
EHSCV075 3/4" 4.0 PSI 145 PSI
EHSCV100 1" 2.5 PSI 145 PSI
EHSCV150 1-1/2" 1.0 PSI 145 PSI
EHSCV200 2" 1.5 PSI 145 PSI
EHSCV250 2-1/2" 0.8 PSI 145 PSI
EHSCV300 3" 0.5 PSI 145 PSI
EHSCV400 4" 0.4 PSI 145 PSI
