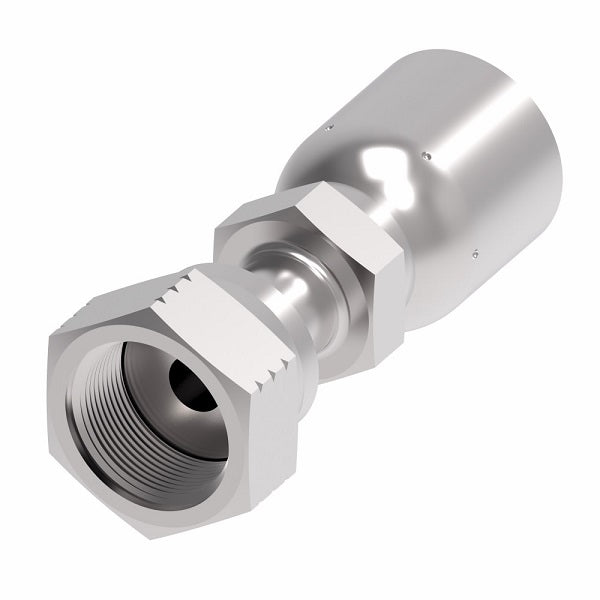

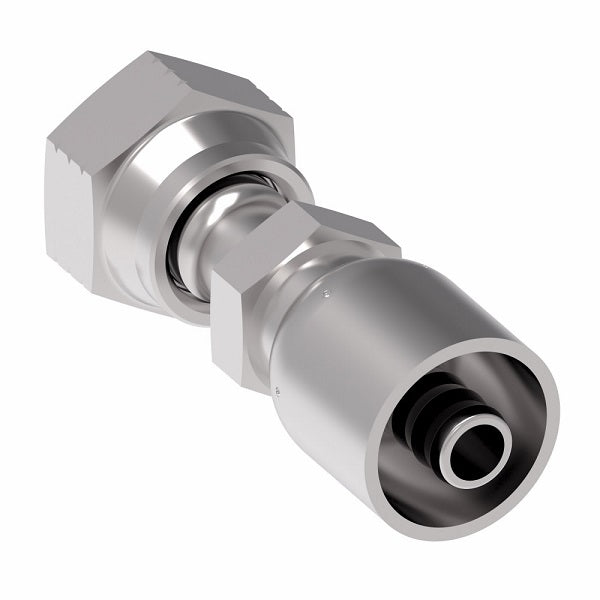

EJ3932-0808S Aeroquip by Danfoss | Female ORS Swivel Metric Hex 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

EJ3932-0808S Aeroquip by Danfoss | Female ORS Swivel Metric Hex 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

Name: EJ3932-0808S Aeroquip by Danfoss | Female ORS Swivel Metric Hex 100R5 Crimp Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: EJ3932-0808S Danfoss
Price: 18.64 USD
Availability: InStock

$18.64 - $18.64

$18.64

$18.64 - $18.64

$18.64

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel Metric Hex 100R5 Crimp Fitting - 90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: EJ3932-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	Hex
EJ3932-0606S	-06	11/16-16	2.00"	1.21"	0.87"
EJ3932-0808S	-08	13-16/16	2.16"	1.36"	0.94"
EJ3932-1010S	-10	1-14	2.35"	1.49"	1.18"
EJ3932-1212S	-12	1-3/16-12	2.50"	1.62"	1.18"
