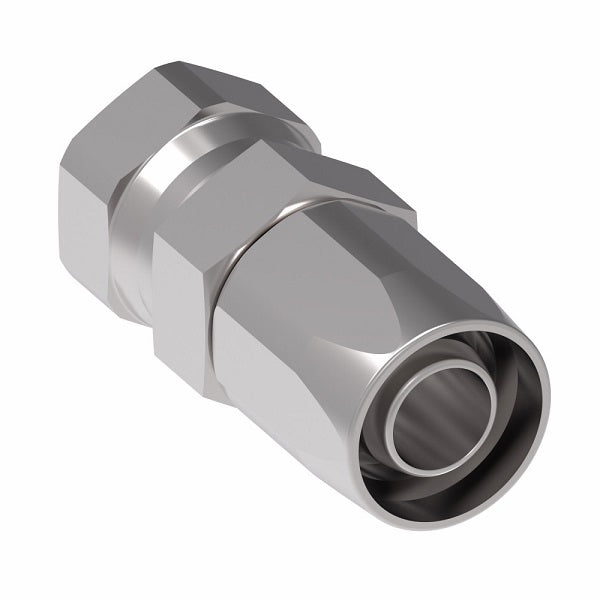

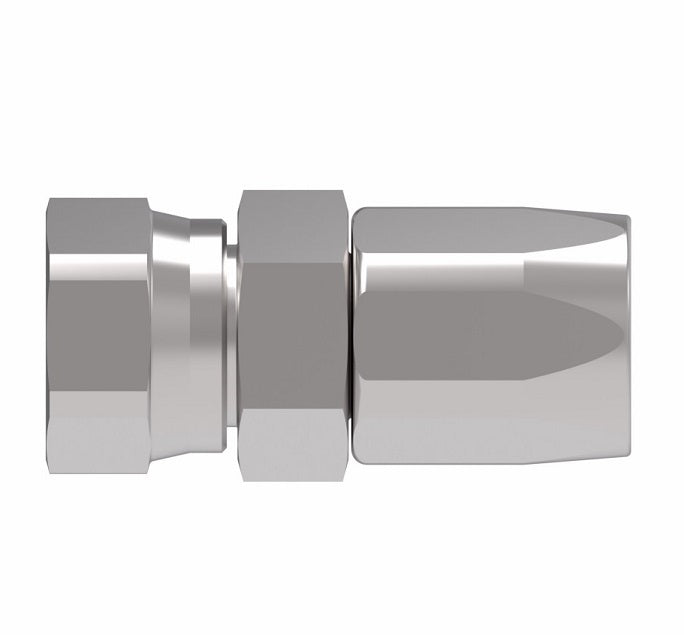

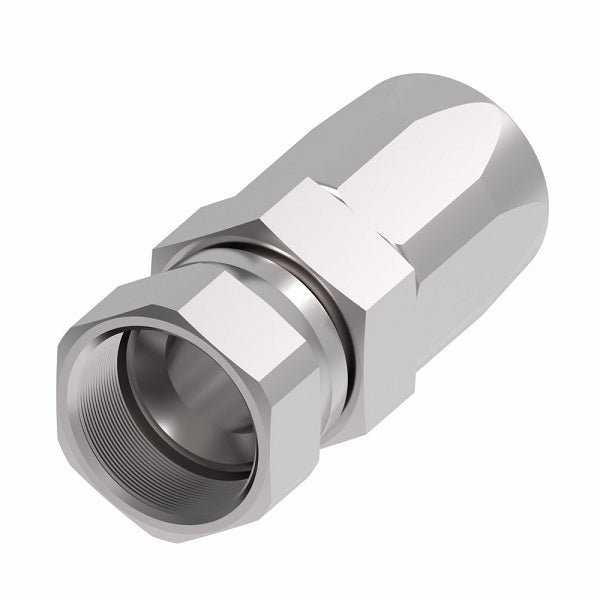

EJ5306-2020S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
EJ5306-2020S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
EJ5306-2020S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel
EJ5306-2020S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

EJ5306-2020S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -20 Female 37° JIC Swivel x -20 Reusable Hose End | Steel

$109.78 - $109.78
$109.78
$109.78 - $109.78
$109.78

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - Straight

For use with FC800 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ5306-2020S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC800 Series
Steel
Part Number 		Hose Size Tube Size Thread Size A Hose cut-off
Factor 		Hole dia. Hex O-Ring ref
EJ5306-1212S 12" 12" 1-1/16x12 3.03" 1.51" 0.47" 1-1/4" FF91026-12
EJ5306-1616S 16" 16" 1-5/16x12 1.78" 1.62" 0.69" 1-1/2" FF91026-16
EJ5306-2020S 20" 20" 1-5/8x12 3.15" 3.15" 0.95" 2" FF91026-20
EJ5306-2424S 24" 24" 1-7/8-12 3.33" 1.95" 1.16" 2-1/4" FF91026-24
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
