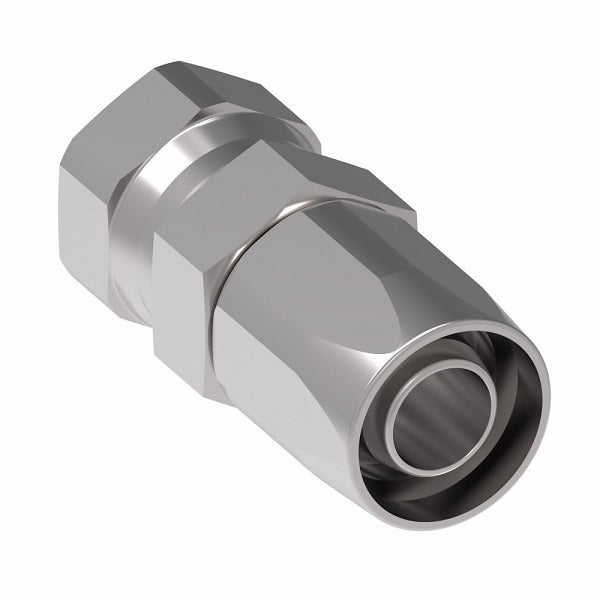

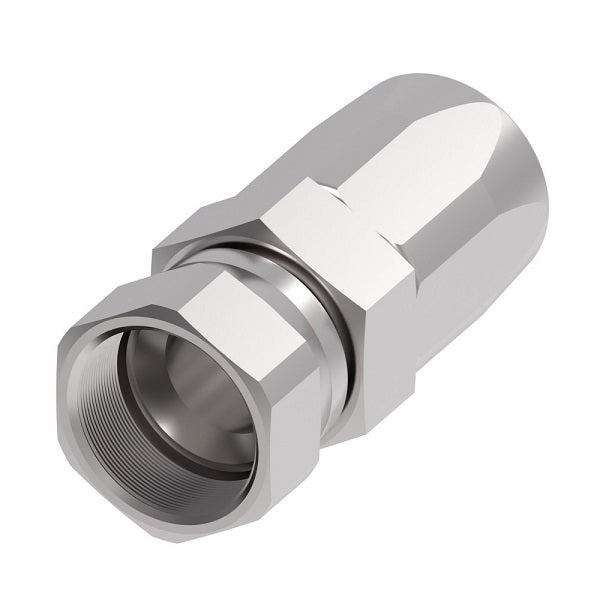

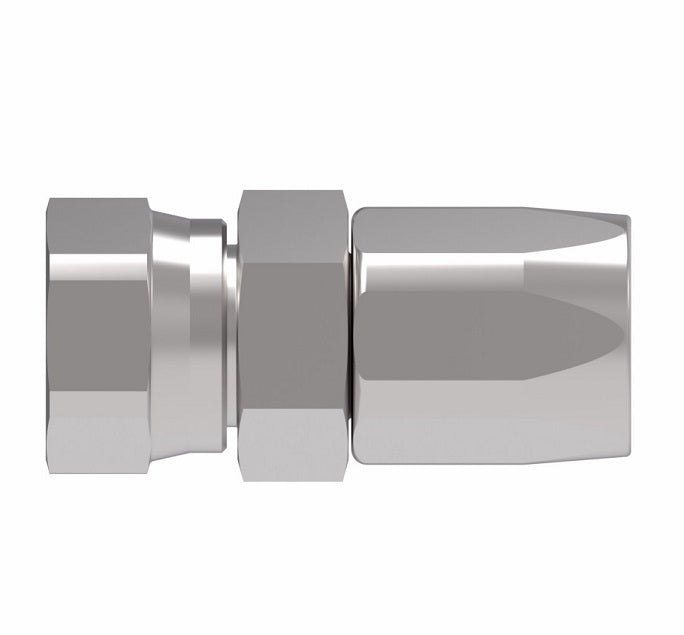

EJ5306-2424S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -24 Female 37° JIC Swivel x -24 Reusable Hose End | Steel

EJ5306-2424S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -24 Female 37° JIC Swivel x -24 Reusable Hose End | Steel

Name: EJ5306-2424S by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | FC800 EverCool | -24 Female 37° JIC Swivel x -24 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: EJ5306-2424S Danfoss
Price: 154.68 USD
Availability: InStock

$154.68 - $154.68

$154.68

$154.68 - $154.68

$154.68

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - Straight

For use with FC800 EverCool A/C & Refrigeration Hose.

Quantity

Specifications for Variant SKU: EJ5306-2424S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Female JIC, 1-1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC800 Series


Steel Part Number	Hose Size	Tube Size	Thread Size	A	Hose cut-off Factor	Hole dia.	Hex	O-Ring ref
EJ5306-1212S	12"	12"	1-1/16x12	3.03"	1.51"	0.47"	1-1/4"	FF91026-12
EJ5306-1616S	16"	16"	1-5/16x12	1.78"	1.62"	0.69"	1-1/2"	FF91026-16
EJ5306-2020S	20"	20"	1-5/8x12	3.15"	3.15"	0.95"	2"	FF91026-20
EJ5306-2424S	24"	24"	1-7/8-12	3.33"	1.95"	1.16"	2-1/4"	FF91026-24

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
