EJ5611-0808S Aeroquip by Danfoss | LifeSaver Braze on Hose End 100R5 Crimp Fitting | FJ Series | -08 Braze x -08 Hose Barb | Steel

EJ5611-0808S Aeroquip by Danfoss | LifeSaver Braze on Hose End 100R5 Crimp Fitting | FJ Series | -08 Braze x -08 Hose Barb | Steel

Name: EJ5611-0808S Aeroquip by Danfoss | LifeSaver Braze on Hose End 100R5 Crimp Fitting | FJ Series | -08 Braze x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: EJ5611-0808S Danfoss
Price: 9.76 USD
Availability: InStock

$9.76 - $9.76

$9.76

$9.76 - $9.76

$9.76

Aeroquip® by Danfoss

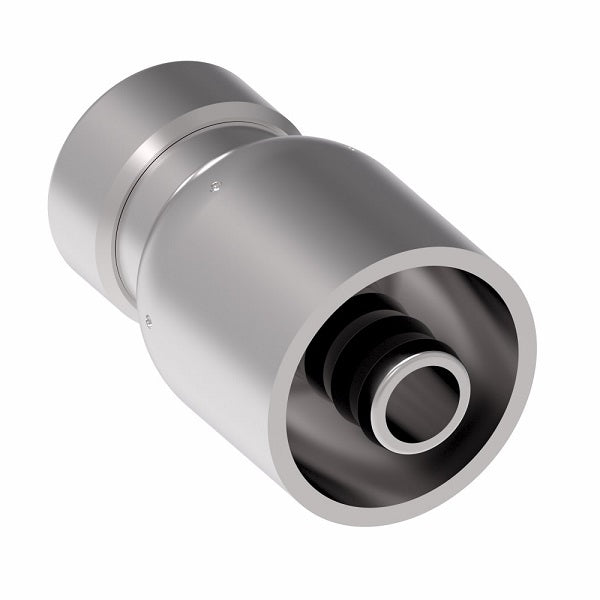

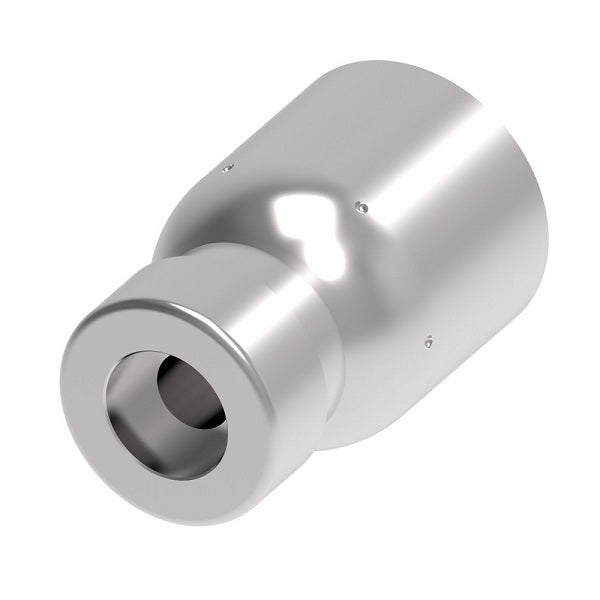

Truck and Fuel 100R5 Crimp Fitting - FJ Series - LifeSaver Braze on Hose End 100R5 Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: EJ5611-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Braze End, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube Size*	Hose Size	A	D
EJ5611-0606S	0.38"	-06	1.34"	0.55"
EJ5611-0608S	0.38"	-08	1.35"	0.55"
EJ5611-0808S	0.50"	-08	1.35"	0.55"
EJ5611-0810S	0.50"	-10	1.46"	0.57"
EJ5611-1010S	0.63"	-10	1.46"	0.57"
EJ5611-1212S	0.75"	-12	1.53"	0.65"
EJ5611-1616S	1.00"	-16	1.69"	0.70"

*Counterbore Diameter for mating Tube

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
